Please send RFQ , we will respond immediately.

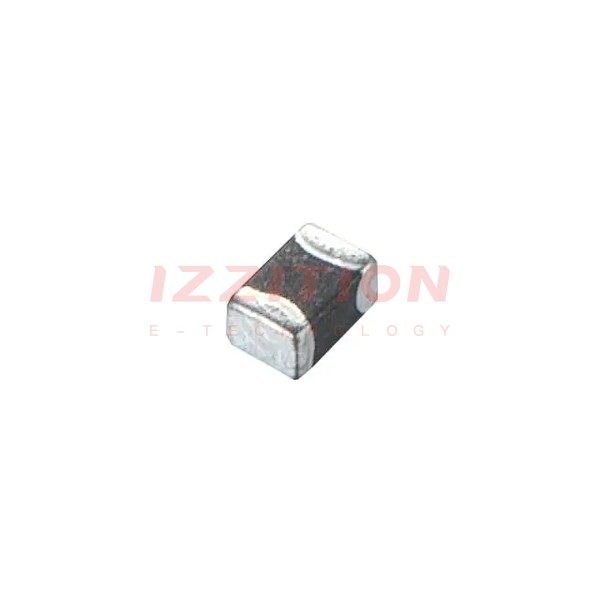

| Part Number | ABGK00160808471Y00 | ABBK00160808471Y00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Filter Type | Signal Line | Signal Line |
| Number of Lines | 1 | 1 |
| Impedance @ Frequency | 470 Ohms @ 100 MHz | 470 Ohms @ 100 MHz |
| Current Rating (Max) | 400mA | 300mA |
| DC Resistance (DCR) (Max) | 300mOhm | 500mOhm |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Mounting Type | Surface Mount | Surface Mount |
| Height (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Features | Automotive | Automotive |
