| Part Number | MGA-31189-TR1G | MGA-31289-TR1G | MGA-31389-TR1G | MGA-31489-TR1G | MGA-31589-TR1G | MGA-31689-TR1G |
|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Frequency | 50MHz ~ 2GHz | 1.5GHz ~ 3GHz | 50MHz ~ 2GHz | 1.5GHz ~ 3GHz | 450MHz ~ 1.5GHz | 1.5GHz ~ 3GHz |
| P1dB | 24dBm | 24dBm | 21.7dBm | 22.2dBm | 27.2dBm | 26.8dBm |
| Gain | 21dB | 18.7dB | 20.6dB | 20.5dB | 20.4dB | 16.7dB |
| Noise Figure | 2dB | 2dB | 2dB | 2dB | 1.9dB | 2.2dB |
| RF Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Voltage - Supply | 5V | 5V | 5V | 5V | 5V | 5V |
| Current - Supply | 111mA | 124mA | 73mA | 69mA | 146mA | 168mA |
| Test Frequency | 900MHz | 1.9GHz | 1.5GHz | 2.5GHz | 900MHz | 2.6GHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA |

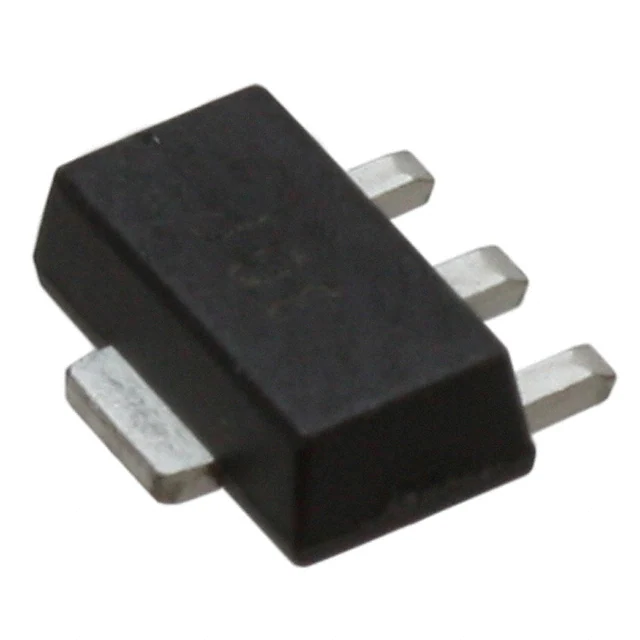

| Supplier Device Package | SOT-89-3 | SOT-89-3 | SOT-89-3 | SOT-89-3 | SOT-89-3 | SOT-89-3 |
