| Part Number | MGA-30789-TR1G | MGA-30889-TR1G | MGA-30989-TR1G | MGA-30489-TR1G | MGA-30689-TR1G |
|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Frequency | 2GHz ~ 6GHz | 40MHz ~ 2.6GHz | 2GHz ~ 6GHz | 250MHz ~ 3GHz | 40MHz ~ 2.6GHz |
| P1dB | 25.7dBm | 20.3dBm | 23.8dBm | 23.3dBm | 22.5dBm |
| Gain | 8.8dB | 15.7dB | 9.6dB | 13.3dB | 14.6dB |
| Noise Figure | 2.7dB | 2dB | 1.65dB | 3dB | 3.3dB |
| RF Type | General Purpose | General Purpose | General Purpose | Cellular, PCS, W-CDMA, WLLand | General Purpose |
| Voltage - Supply | 5V | 5V | 5V | 8.4V | 5V |
| Current - Supply | 100mA | 65mA | 51mA | 180mA | 104mA |
| Test Frequency | 5GHz | 1.95GHz | 5GHz | 1.9GHz | 1.95GHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA |

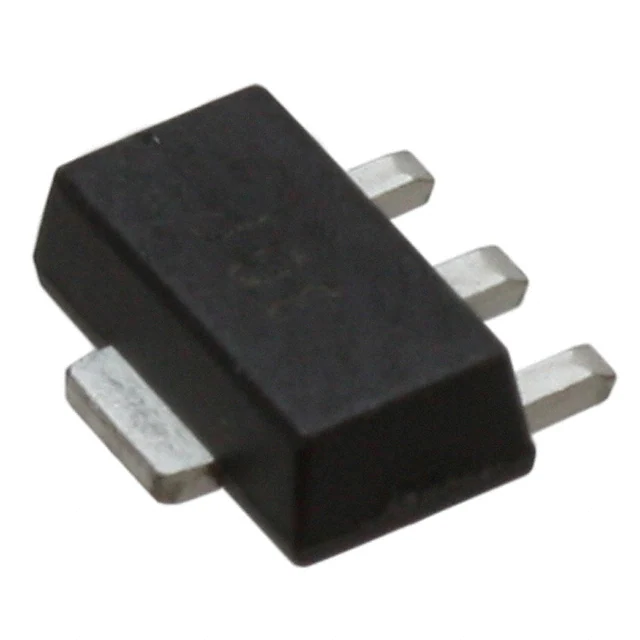

| Supplier Device Package | SOT-89-3 | SOT-89-3 | SOT-89-3 | SOT-89-3 | SOT-89-3 |
