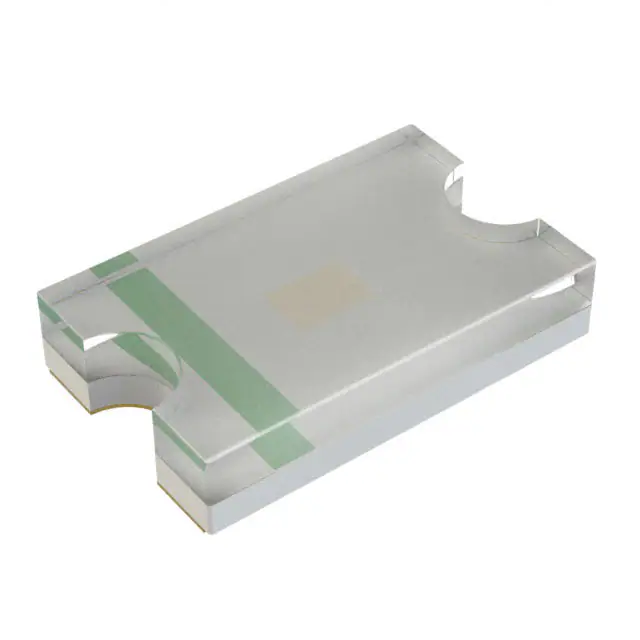

| Part Number | HSMY-C177 | HSMY-C197 | HSMY-C170 |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active |
| Color | Yellow | Yellow | Yellow |
| Configuration | Standard | Standard | Standard |
| Lens Color | White | White | White |
| Lens Transparency | Diffused | Diffused | Diffused |
| Millicandela Rating | 8mcd | 8mcd | 8mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.25mm | 1.60mm x 0.80mm | 1.40mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 170° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 586nm | 586nm | 586nm |
| Wavelength - Peak | 589nm | 589nm | 589nm |
| Features | - | - | - |
| Package / Case | 0805 (2012 Metric) | 0603 (1608 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 2.00mm L x 1.25mm W | 1.60mm L x 0.80mm W | 2.00mm L x 1.25mm W |
| Height (Max) | 0.40mm | 0.40mm | 0.80mm |
