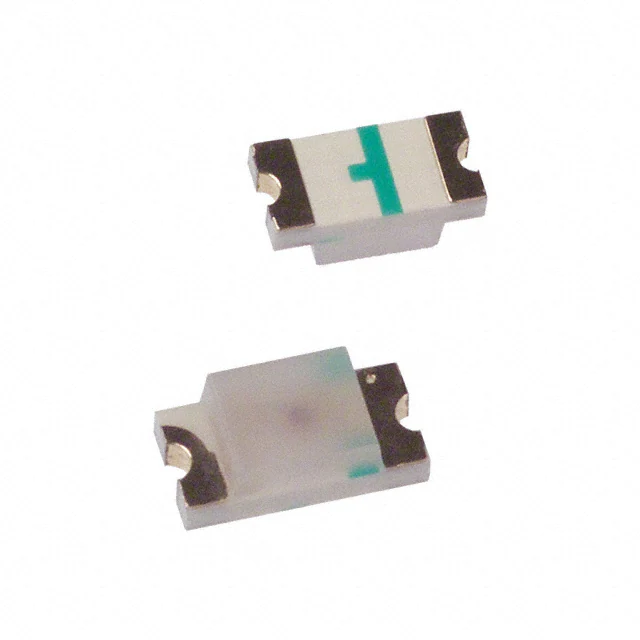

| Part Number | HSMS-C150 | HSMY-C150 | HSMS-C190 | HSMS-C170 | HSMH-C150 | HSML-C150 | HSMM-C150 | HSMN-C150 | HSMQ-C150 | HSMR-C150 | HSMS-C110 | HSMS-C120 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Color | Red | Yellow | Red | Red | Red | Orange | Green | Blue | Green | Blue | Red | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | White | White | White | White | White | White | White | White | White | White | White | Colorless |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Clear |
| Millicandela Rating | 10mcd | 8mcd | 10mcd | 10mcd | 17mcd | 90mcd | 120mcd | 35mcd | 145mcd | 55mcd | 10mcd | 10mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 1.00mm x 0.80mm | 1.40mm x 1.25mm | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 2.60mm x 1.00mm | 1.20mm x 0.60mm |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V | 2.1V | 1.8V | 1.9V | 3.3V | 3.3V | 3.4V | 3.4V | 2.1V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 170° | 170° | 170° | 170° | 170° | 170° | 170° | 170° | 140° | 155° | 130° | 155° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 626nm | 586nm | 626nm | 626nm | 639nm | 605nm | 525nm | 470nm | 527nm | 473nm | 626nm | 626nm |
| Wavelength - Peak | 630nm | 589nm | 630nm | 630nm | 660nm | 609nm | 523nm | 468nm | 520nm | 469nm | 630nm | 630nm |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 0603 (1608 Metric) | 0805 (2012 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 1.60mm L x 0.80mm W | 2.00mm L x 1.25mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.50mm W | 1.60mm L x 1.00mm W |
| Height (Max) | 1.10mm | 1.10mm | 0.80mm | 0.80mm | 1.10mm | 1.10mm | 1.10mm | 1.10mm | 1.10mm | 1.10mm | 1.00mm | 0.60mm |
