Please send RFQ , we will respond immediately.

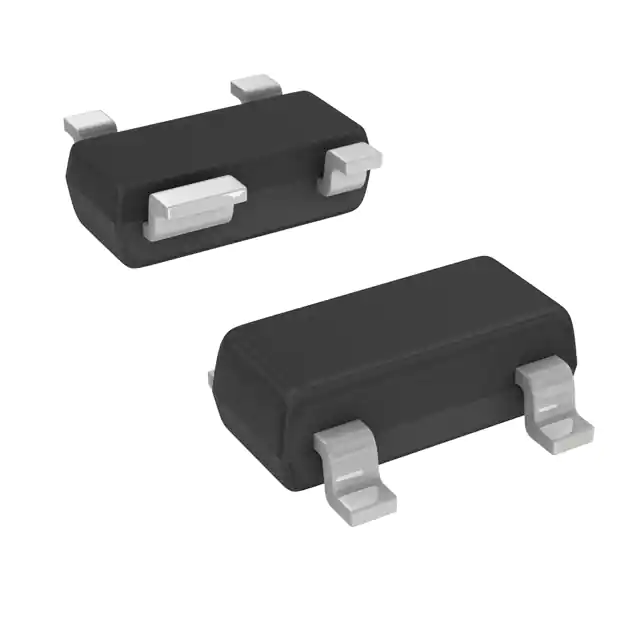

| Part Number | HSMS-2815-TR1G | HSMS-2815-TR2G | HSMS-281E-TR1G | HSMS-281F-TR1G | HSMS-281C-TR1G | HSMS-281L-TR1G | HSMS-281K-TR1G | HSMS-2817-TR1G | HSMS-2855-TR1G | HSMS-281B-TR1G | HSMS-2825-TR1G | HSMS-2818-TR1G | HSMS-2805-TR1G | HSMS-2810-TR1G | HSMS-2812-TR1G | HSMS-2813-TR1G | HSMS-2814-TR1G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky - 2 Independent | Schottky - 2 Independent | Schottky - 1 Pair Common Anode | Schottky - 1 Pair Common Cathode | Schottky - 1 Pair Series Connection | Schottky - 3 Independent | Schottky - 1 Pair Isolated | Schottky - 1 Bridge | Schottky - 2 Independent | Schottky - Single | Schottky - 2 Independent | Schottky - 1 Bridge | Schottky - 2 Independent | Schottky - Single | Schottky - 1 Pair Series Connection | Schottky - 1 Pair Common Anode | Schottky - 1 Pair Common Cathode |
| Voltage - Peak Reverse (Max) | 20V | 20V | 20V | 20V | 20V | 20V | 20V | 20V | 2V | 20V | 15V | 20V | 70V | 20V | 20V | 20V | 20V |
| Current - Max | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | - | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Capacitance @ Vr, F | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 0.3pF @ 1V, 1MHz | 1.2pF @ 0V, 1MHz | 1pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz |
| Resistance @ If, F | 15Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz | - | 15Ohm @ 5mA, 1MHz | 12Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz | 35Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz | 15Ohm @ 5mA, 1MHz |
| Power Dissipation (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Package / Case | TO-253-4, TO-253AA | TO-253-4, TO-253AA | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | TO-253-4, TO-253AA | TO-253-4, TO-253AA | SC-70, SOT-323 | TO-253-4, TO-253AA | TO-253-4, TO-253AA | TO-253-4, TO-253AA | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-143-4 | SOT-143-4 | SOT-323 | SOT-323 | SOT-323 | SOT-363 | SOT-363 | SOT-143-4 | SOT-143-4 | SOT-323 | SOT-143-4 | SOT-143-4 | SOT-143-4 | SOT-23-3 | SOT-23-3 | SOT-23-3 | SOT-23-3 |
