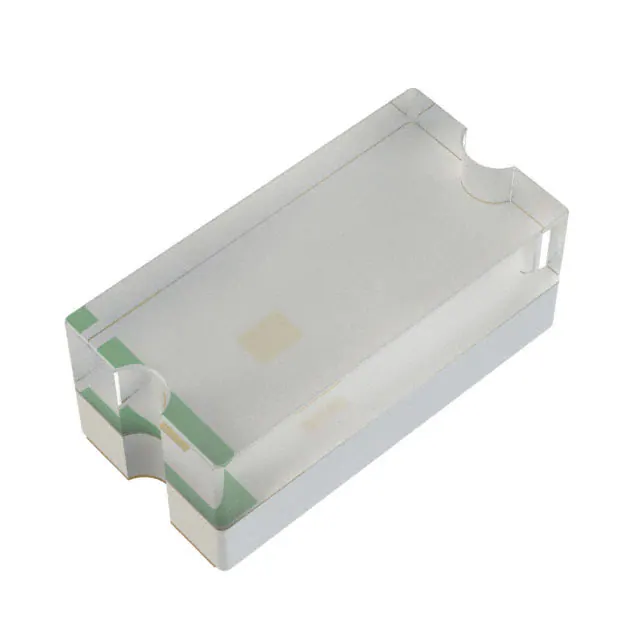

| Part Number | HSMQ-C280 | HSMY-C280 | HSMS-C280 | HSMW-C280 | HSMG-C280 |
|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active |
| Color | Green | Yellow | Red | White | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | White | White | White | White | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 223mcd | 8mcd | 10mcd | 263mcd | 15mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.50mm | 1.00mm x 0.50mm | 1.00mm x 0.50mm | 1.00mm x 0.50mm | 1.00mm x 0.50mm |
| Voltage - Forward (Vf) (Typ) | 3.3V | 2.1V | 2.1V | 3.3V | 2.2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 522nm | 586nm | 626nm | - | 572nm |
| Wavelength - Peak | 516nm | 589nm | 630nm | - | 570nm |
| Features | - | - | - | - | - |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | SMD | - | - | 0402 | 0402 |
| Size / Dimension | 1.00mm L x 0.50mm W | 1.00mm L x 0.50mm W | 1.00mm L x 0.50mm W | 1.00mm L x 0.50mm W | 1.00mm L x 0.50mm W |
| Height (Max) | 0.50mm | 0.40mm | 0.40mm | 0.50mm | 0.40mm |
