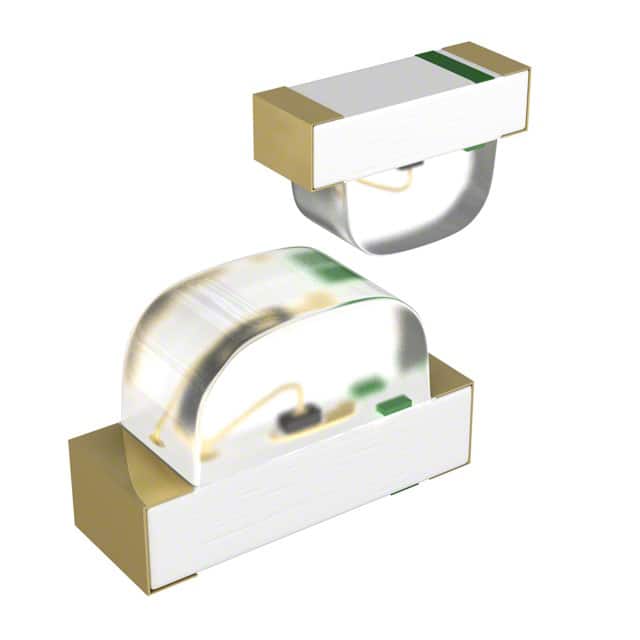

| Part Number | HSMM-C120 | HSMW-C120 | HSMM-C190 | HSMR-C120 | HSMM-C150 | HSMS-C120 | HSMN-C120 | HSMM-C170 | HSMQ-C120 | HSMG-C120 | HSMH-C120 | HSML-C120 | HSMM-C110 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Color | Green | White | Green | Blue | Green | Red | Blue | Green | Green | Green | Red | Orange | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | White | White | Colorless | White | Colorless | Colorless | White | Colorless | Colorless | White | Colorless | Colorless |
| Lens Transparency | Clear | Diffused | Diffused | Clear | Diffused | Clear | Clear | Diffused | Clear | Clear | Diffused | Clear | Clear |
| Millicandela Rating | 120mcd | 160mcd | 120mcd | 55mcd | 120mcd | 10mcd | 30mcd | 120mcd | 145mcd | 15mcd | 17mcd | 90mcd | 126mcd |
| Lens Style | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 1.20mm x 0.60mm | 1.20mm x 0.60mm | 1.20mm x 0.60mm | 1.20mm x 0.60mm | 2.00mm x 1.60mm | 1.20mm x 0.60mm | 1.20mm x 0.60mm | 1.40mm x 1.25mm | 1.20mm x 0.60mm | 1.20mm x 0.60mm | 1.20mm x 0.60mm | 1.20mm x 0.60mm | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 3.4V | 3.6V | 3.3V | 3.4V | 3.3V | 2.1V | 3.4V | 3.3V | 3.4V | 2.2V | 1.8V | 1.9V | 3.3V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 155° | 155° | 170° | 155° | 170° | 155° | 155° | 170° | 155° | 155° | 155° | 155° | 130° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount | Surface Mount, Right Angle | Surface Mount | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 525nm | - | 525nm | 473nm | 525nm | 626nm | 470nm | 525nm | 527nm | 572nm | 639nm | 605nm | 525nm |
| Wavelength - Peak | 523nm | - | 523nm | 469nm | 523nm | 630nm | 468nm | 523nm | 520nm | 570nm | 660nm | 609nm | 523nm |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 0603 (1608 Metric) | 2-SMD, No Lead | 1206 (3216 Metric) | 2-SMD, No Lead | 2-SMD, No Lead | 0805 (2012 Metric) | 2-SMD, No Lead | 0603 (1608 Metric) | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | 0603 | 2-SMD | Chip LED | Chip LED |
| Size / Dimension | 1.60mm L x 1.00mm W | 1.60mm L x 1.00mm W | 1.60mm L x 0.80mm W | 1.60mm L x 1.00mm W | 3.20mm L x 1.60mm W | 1.60mm L x 1.00mm W | 1.60mm L x 1.00mm W | 2.00mm L x 1.25mm W | 1.60mm L x 1.00mm W | 1.60mm L x 1.00mm W | 1.60mm L x 1.00mm W | 1.60mm L x 1.00mm W | 3.20mm L x 1.50mm W |
| Height (Max) | 0.60mm | 0.70mm | 0.80mm | 0.60mm | 1.10mm | 0.60mm | 0.60mm | 0.80mm | 0.60mm | 0.60mm | 0.70mm | 0.60mm | 1.00mm |
