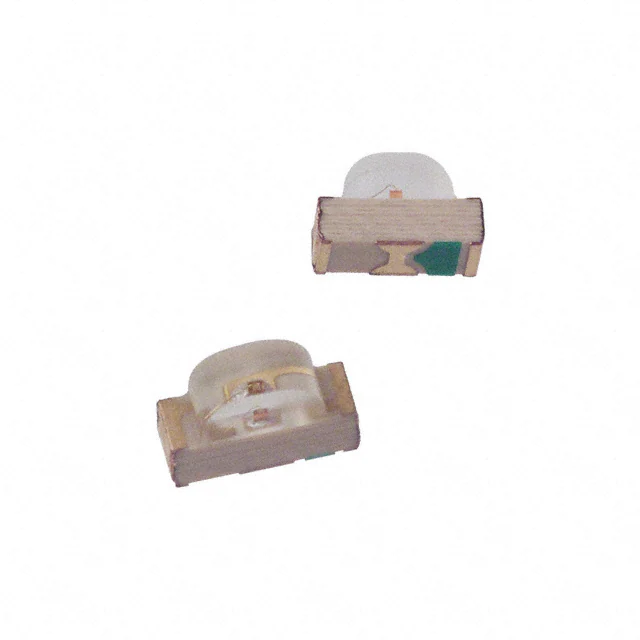

| Part Number | HSMH-C680 | HSML-C680 | HSMS-C680 | HSMC-C680 | HSMG-C680 |
|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Obsolete | Active | Active | Active | Active |
| Color | Red | Orange | Red | Red | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 30.7mcd | 108.6mcd | 5.1mcd | 62.3mcd | 13.3mcd |
| Lens Style | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 1.8V | 2V | 2V | 2V | 2.2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 125° | 115° | 125° | 115° | 125° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 642nm | 604nm | 621nm | 630nm | 573nm |
| Wavelength - Peak | 657nm | 611nm | 636nm | 643nm | 568nm |
| Features | - | - | - | - | - |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 3.00mm L x 1.00mm W | 3.00mm L x 1.00mm W | 3.00mm L x 1.00mm W | 3.00mm L x 1.00mm W | 3.00mm L x 1.00mm W |
| Height (Max) | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm |
