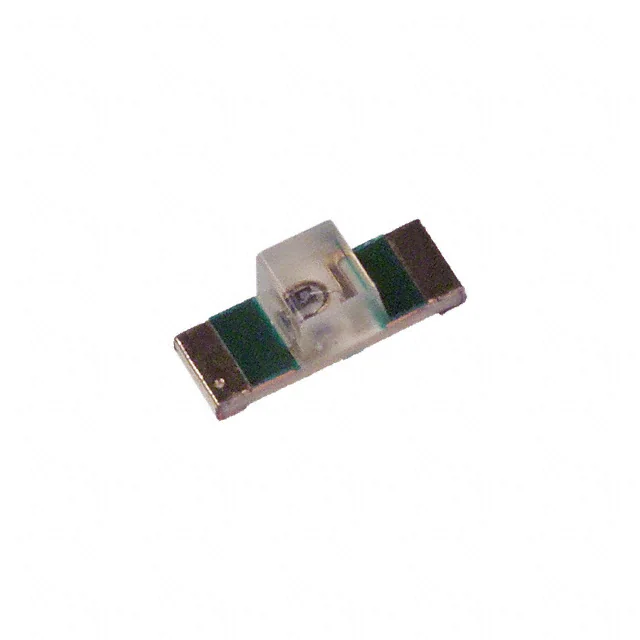

| Part Number | HSMG-C265 | HSMH-C265 | HSML-C265 | HSMQ-C265 | HSMR-C265 | HSMC-C265 | HSME-C265 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Color | Green | Red | Orange | Green | Blue | Red | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | White | Colorless | Colorless | Colorless | Colorless | White | Colorless |
| Lens Transparency | Diffused | Clear | Clear | Clear | Clear | Diffused | Clear |
| Millicandela Rating | 15mcd | 17mcd | 75mcd | 140mcd | 45mcd | 75mcd | 50mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.25mm x 1.20mm | 1.20mm x 1.25mm | 1.25mm x 1.20mm | 1.25mm x 1.20mm | 1.20mm x 1.25mm | 1.25mm x 1.20mm | 1.25mm x 1.20mm |
| Voltage - Forward (Vf) (Typ) | 2.2V | 1.8V | 1.9V | 3.4V | 3.4V | 1.9V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 170° | 170° | 150° | 150° | 150° | 130° | 150° |
| Mounting Type | Surface Mount, Bottom Entry | Surface Mount, Bottom Entry | Surface Mount, Bottom Entry | Surface Mount | Surface Mount | Surface Mount, Bottom Entry | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 572nm | 639nm | 605nm | 527nm | 473nm | 626nm | 572nm |
| Wavelength - Peak | 570nm | 660nm | 609nm | 520nm | 469nm | 637nm | 570nm |
| Features | - | - | - | - | - | - | - |
| Package / Case | 1305 (3412 Metric) | 1305 (3412 Metric) | 1305 (3412 Metric) | 1305 (3412 Metric) | 1305 (3412 Metric) | 1305 (3412 Metric) | 1305 (3412 Metric) |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Reverse Package Chip LED | 1305 (3412) |
| Size / Dimension | 3.40mm L x 1.25mm W | 3.40mm L x 1.25mm W | 3.40mm L x 1.25mm W | 3.40mm L x 1.25mm W | 3.40mm L x 1.25mm W | 3.40mm L x 1.25mm W | 3.40mm L x 1.25mm W |
| Height (Max) | 1.10mm | 1.10mm | 1.10mm | 1.20mm | 1.10mm | 1.10mm | 1.20mm |
