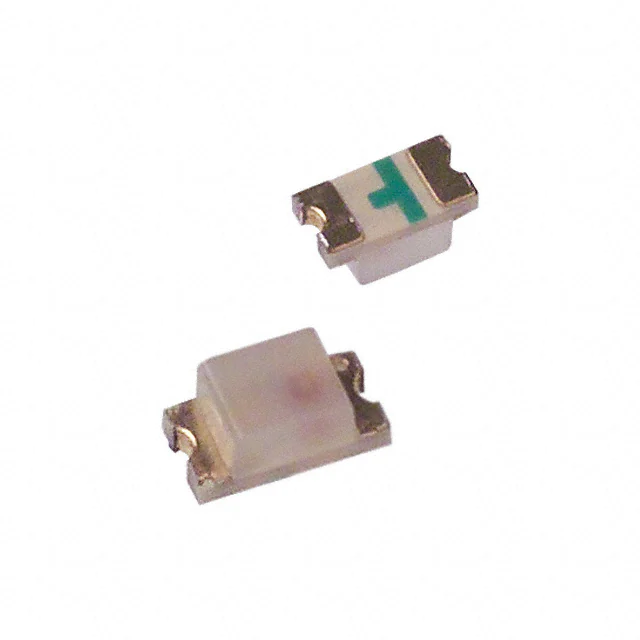

| Part Number | HSMG-C197 | HSML-C197 | HSMQ-C197 | HSMC-C197 | HSMD-C197 | HSMG-C177 | HSMG-C190 | HSMG-C191 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Color | Green | Orange | Green | Red | Orange | Green | Green | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | White | White | White | White | White | White | White | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 15mcd | 90mcd | 145mcd | 90mcd | 8mcd | 15mcd | 15mcd | 15mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm | 1.60mm x 0.80mm | 1.60mm x 0.80mm | 1.60mm x 0.80mm | 1.60mm x 0.80mm | 2.00mm x 1.25mm | 1.00mm x 0.80mm | 1.00mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.2V | 1.9V | 3.4V | 1.9V | 2.2V | 2.2V | 2.2V | 2.2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° | 130° | 170° | 130° | 170° | 170° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 572nm | 605nm | 527nm | 626nm | 604nm | 572nm | 572nm | 572nm |
| Wavelength - Peak | 570nm | 609nm | 520nm | 637nm | 605nm | 570nm | 570nm | 570nm |
| Features | - | - | - | - | - | - | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0805 (2012 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | 0603 | 0603 | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 2.00mm L x 1.25mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.40mm | 0.40mm | 0.40mm | 0.40mm | 0.40mm | 0.40mm | 0.80mm | 0.60mm |
