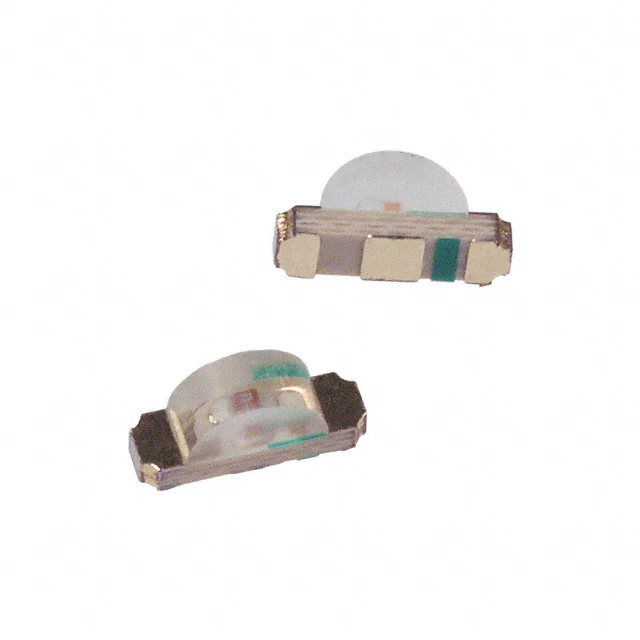

| Part Number | HSMG-C110 | HSMG-C190 | HSMG-C170 | HSMG-C150 | HSMG-C120 | HSMH-C110 | HSMN-C110 | HSMR-C110 | HSMM-C110 | HSMQ-C110 | HSML-C110 | HSMC-C110 | HSMD-C110 | HSME-C110 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active |
| Color | Green | Green | Green | Green | Green | Red | Blue | Blue | Green | Green | Orange | Red | Orange | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | White | White | White | White | Colorless | White | Colorless | White | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Clear | Diffused | Clear | Diffused | Clear | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 15mcd | 15mcd | 15mcd | 15mcd | 15mcd | 17mcd | 39mcd | 60mcd | 126mcd | 150mcd | 95mcd | 95mcd | 8mcd | 52mcd |
| Lens Style | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 2.60mm x 1.00mm | 1.00mm x 0.80mm | 1.40mm x 1.25mm | 2.00mm x 1.60mm | 1.20mm x 0.60mm | 2.60mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 1.8V | 3.3V | 3.4V | 3.3V | 3.4V | 1.9V | 1.9V | 2.2V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 170° | 170° | 170° | 155° | 130° | 130° | 130° | 130° | 130° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount |
| Wavelength - Dominant | 572nm | 572nm | 572nm | 572nm | 572nm | 639nm | 470nm | 473nm | 525nm | 527nm | 605nm | 626nm | 604nm | 572nm |
| Wavelength - Peak | 570nm | 570nm | 570nm | 570nm | 570nm | 660nm | 468nm | 469nm | 523nm | 520nm | 609nm | 637nm | 605nm | 570nm |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Package / Case | 2-SMD, No Lead | 0603 (1608 Metric) | 0805 (2012 Metric) | 1206 (3216 Metric) | 0603 (1608 Metric) | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED | 0603 | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 3.20mm L x 1.50mm W | 1.60mm L x 0.80mm W | 2.00mm L x 1.25mm W | 3.20mm L x 1.60mm W | 1.60mm L x 1.00mm W | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W |
| Height (Max) | 1.00mm | 0.80mm | 0.80mm | 1.10mm | 0.60mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm |
