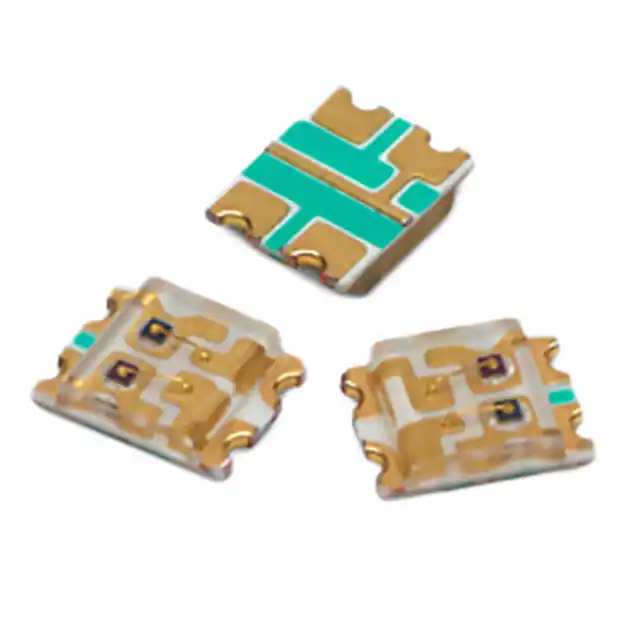

| Part Number | HSMF-C171 | HSMF-C177 |
|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active |
| Color | Blue, Orange | Green, Orange |
| Configuration | - | - |
| Lens Color | - | - |
| Lens Transparency | Diffused | Diffused |
| Millicandela Rating | 28.5mcd Blue, 45mcd Orange | 285mcd Green, 45mcd Orange |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | - | - |
| Voltage - Forward (Vf) (Typ) | 3.4V Blue, 2V Orange | 3.4V Green, 2V Orange |
| Current - Test | 10mA Blue, 10mA Orange | 10mA Green, 10mA Orange |
| Viewing Angle | 150° Blue, 140° Orange | 150° Green, 140° Orange |
| Mounting Type | Surface Mount | Surface Mount |
| Wavelength - Dominant | 467nm Blue, 605nm Orange | 525nm Green, 605nm Orange |
| Wavelength - Peak | - | - |
| Features | - | - |
| Package / Case | 0605 (1613 Metric) | 0605 (1613 Metric) |
| Supplier Device Package | 0605 | 0605 |
| Size / Dimension | 1.60mm L x 1.25mm W | 1.60mm L x 1.25mm W |
| Height (Max) | 0.40mm | 0.40mm |
