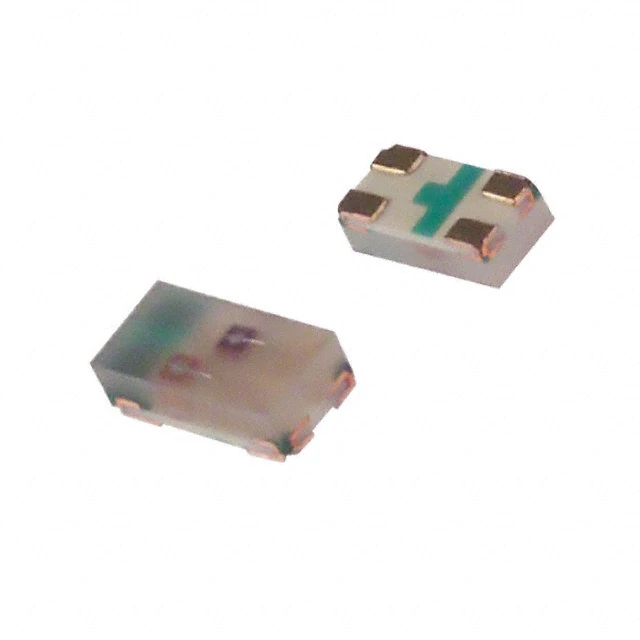

| Part Number | HSMF-C169 | HSMF-C162 | HSMF-C163 | HSMF-C164 | HSMF-C165 | HSMF-C166 | HSMF-C167 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Color | Amber, Blue | Amber, Red | Green, Red | Blue, Red | Green, Red | Green, Yellow | Green, Orange |
| Configuration | Independent | Independent | Independent | Independent | Independent | Independent | Independent |
| Lens Color | White | White | White | White | White | White | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 90mcd Amber, 10mcd Blue | 90mcd Amber, 90mcd Red | 45mcd Green, 90mcd Red | 10mcd Blue, 90mcd Red | 15mcd Green, 10mcd Red | 15mcd Green, 8mcd Yellow | 15mcd Green, 8mcd Orange |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm | 1.60mm x 0.80mm | 1.60mm x 0.80mm | 1.60mm x 0.80mm | 1.60mm x 0.80mm | 1.60mm x 0.80mm | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Amber, 3.4V Blue | 1.9V Amber, 1.9V Red | 3.4V Green, 1.9V Red | 3.4V Blue, 1.9V Red | 2.2V Green, 1.95V Red | 2.2V Green, 2.1V Yellow | 2.2V Green, 2.2V Orange |
| Current - Test | 20mA Amber, 10mA Blue | 20mA Amber, 20mA Red | 10mA Green, 20mA Red | 20mA Blue, 20mA Red | 20mA Green, 20mA Red | 20mA Green, 20mA Yellow | 20mA Green, 20mA Orange |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 592nm Amber, 470nm Blue | 592nm Amber, 626nm Red | 525nm Green, 626nm Red | 470nm Blue, 626nm Red | 572nm Green, 621nm Red | 572nm Green, 586nm Yellow | 572nm Green, 604nm Orange |
| Wavelength - Peak | 595nm Amber, 468nm Blue | 595nm Amber, 637nm Red | 523nm Green, 637nm Red | 468nm Blue, 637nm Red | 570nm Green, 636nm Red | 570nm Green, 589nm Yellow | 570nm Green, 605nm Orange |
| Features | - | - | - | - | - | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.50mm | 0.50mm | 0.50mm | 0.50mm | 0.50mm | 0.50mm | 0.50mm |
