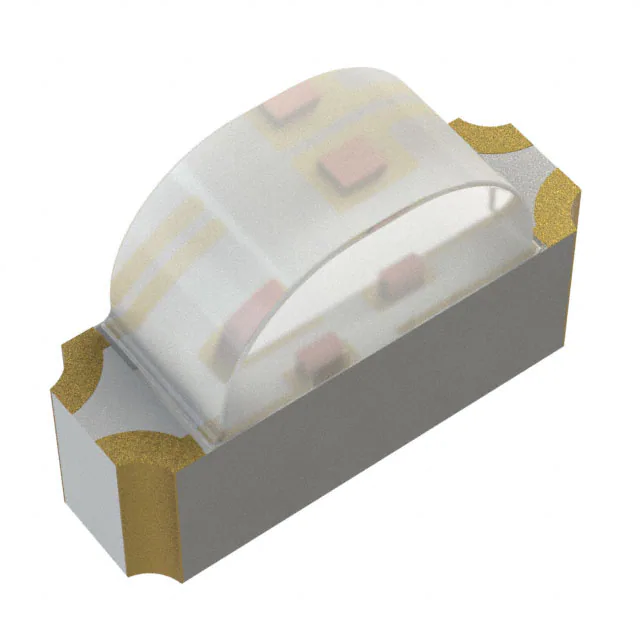

| Part Number | HSMF-C142 | HSMF-C162 | HSMF-C144 | HSMF-C145 | HSMF-C143 | HSMF-C146 |
|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active |
| Color | Green, Red | Amber, Red | Green, Red | Green, Red | Amber, Green | Blue, Red |
| Configuration | Common Anode | Independent | Common Anode | Common Anode | Common Anode | Common Anode |
| Lens Color | - | White | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | - | Diffused | Clear | Clear | Clear | Clear |
| Millicandela Rating | 25.5mcd Green, 42mcd Red | 90mcd Amber, 90mcd Red | 33mcd Green, 79mcd Red | 223mcd Green, 79mcd Red | 103mcd Amber, 33mcd Green | 75mcd Blue, 79mcd Red |
| Lens Style | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm | 1.60mm x 0.80mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red | 1.9V Amber, 1.9V Red | 2V Green, 2V Red | 3.4V Green, 2V Red | 2V Amber, 2V Green | 3.4V Blue, 2.3V Red |
| Current - Test | 20mA Green, 20mA Red | 20mA Amber, 20mA Red | 20mA Green, 20mA Red | 20mA Green, 20mA Red | 20mA Amber, 20mA Green | 20mA Blue, 20mA Red |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 570nm Green, 639nm Red | 592nm Amber, 626nm Red | 570nm Green, 632nm Red | 523nm Green, 632nm Red | 589nm Amber, 570nm Green | 464nm Blue, 632nm Red |
| Wavelength - Peak | 571nm Green, 660nm Red | 595nm Amber, 637nm Red | 571nm Green, 644nm Red | 517nm Green, 644nm Red | 591nm Amber, 571nm Green | 459nm Blue, 644nm Red |
| Features | - | - | - | - | - | - |
| Package / Case | 4-SMD | 0603 (1608 Metric) | 4-SMD | 4-SMD | 4-SMD | 4-SMD |
| Supplier Device Package | SMD | 0603 | SMD | SMD | SMD | SMD |
| Size / Dimension | 3.00mm L x 2.00mm W | 1.60mm L x 0.80mm W | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W |
| Height (Max) | 1.10mm | 0.50mm | 1.10mm | 1.10mm | 1.10mm | 1.10mm |
