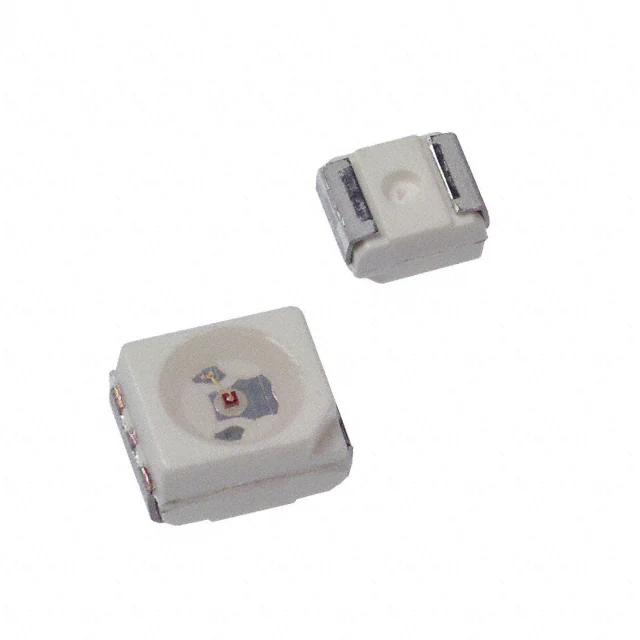

| Part Number | HSMF-A226-A00J1 | HSMF-A206-A00J1 | HSMF-A222-A00J1 |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active |
| Color | Amber, Yellow-Green | Green, Yellow | Amber, Red |
| Configuration | - | Independent | Independent |
| Lens Color | - | Colorless | Colorless |
| Lens Transparency | - | Clear | Clear |
| Millicandela Rating | 100mcd Amber, 60mcd Yellow-Green | 20mcd Green, 16mcd Yellow | 80mcd Amber, 80mcd Red |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Lens Size | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.9V Amber, 1.9V Yellow-Green | 2.2V Green, 2.2V Yellow | 1.9V Amber, 1.9V Red |
| Current - Test | 20mA | 20mA Green, 20mA Yellow | 20mA Amber, 20mA Red |
| Viewing Angle | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 590nm Amber, 571nm Yellow-Green | 569nm Green, 585nm Yellow | 590nm Amber, 626nm Red |
| Wavelength - Peak | 592nm Amber, 575nm Yellow-Green | 565nm Green, 583nm Yellow | 592nm Amber, 635nm Red |
| Features | - | - | - |
| Package / Case | 2-PLCC | 4-PLCC | 4-PLCC |
| Supplier Device Package | 2-PLCC | 4-PLCC | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm | 2.10mm | 2.10mm |
