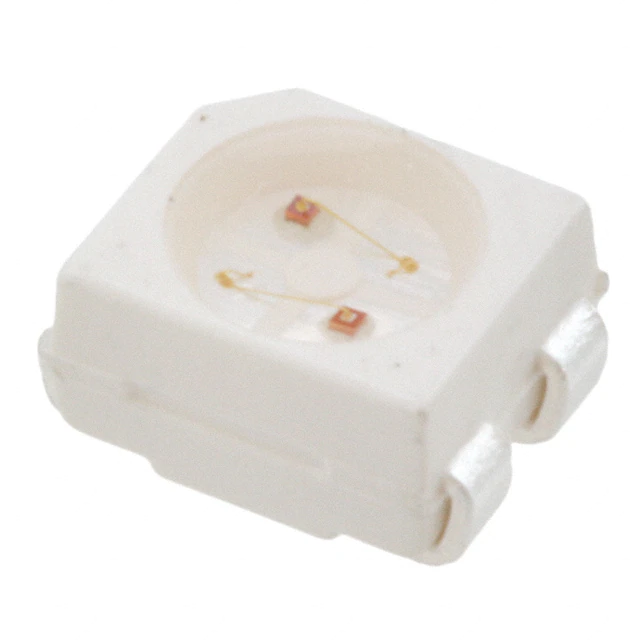

| Part Number | HSMF-A206-A00J1 | HSMF-A226-A00J1 | HSMF-A201-A00J1 | HSMF-A202-A00J1 | HSMF-A203-A00J1 | HSMF-A204-A00J1 | HSMF-A205-A00J1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Color | Green, Yellow | Amber, Yellow-Green | Green, Red | Red, Yellow | Green, Red | Green, Orange | Green, Orange |
| Configuration | Independent | - | Independent | Independent | Independent | Independent | Independent |
| Lens Color | Colorless | - | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | - | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 20mcd Green, 16mcd Yellow | 100mcd Amber, 60mcd Yellow-Green | 20mcd Green, 16mcd Red | 16mcd Red, 12mcd Yellow | 8mcd Green, 16mcd Red | 20mcd Green, 16mcd Orange | 8mcd Green, 16mcd Orange |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Lens Size | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia | 2.20mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.2V Yellow | 1.9V Amber, 1.9V Yellow-Green | 2.2V Green, 2.2V Red | 2.2V Red, 2.2V Yellow | 2.2V Green, 2.2V Red | 2.2V Green, 2.2V Orange | 2.2V Green, 2.2V Orange |
| Current - Test | 20mA Green, 20mA Yellow | 20mA | 20mA Green, 20mA Red | 20mA Red, 20mA Yellow | 20mA Green, 20mA Red | 20mA Green, 20mA Orange | 20mA Green, 20mA Orange |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 569nm Green, 585nm Yellow | 590nm Amber, 571nm Yellow-Green | 569nm Green, 626nm Red | 626nm Red, 585nm Yellow | 560nm Green, 626nm Red | 569nm Green, 602nm Orange | 560nm Green, 602nm Orange |
| Wavelength - Peak | 565nm Green, 583nm Yellow | 592nm Amber, 575nm Yellow-Green | 565nm Green, 635nm Red | 635nm Red, 583nm Yellow | 558nm Green, 635nm Red | 565nm Green, 600nm Orange | 558nm Green, 600nm Orange |
| Features | - | - | - | - | - | - | - |
| Package / Case | 4-PLCC | 2-PLCC | 4-PLCC | 4-PLCC | 4-PLCC | 4-PLCC | 4-PLCC |
| Supplier Device Package | 4-PLCC | 2-PLCC | 4-PLCC | 4-PLCC | 4-PLCC | 4-PLCC | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm |
