Please send RFQ , we will respond immediately.

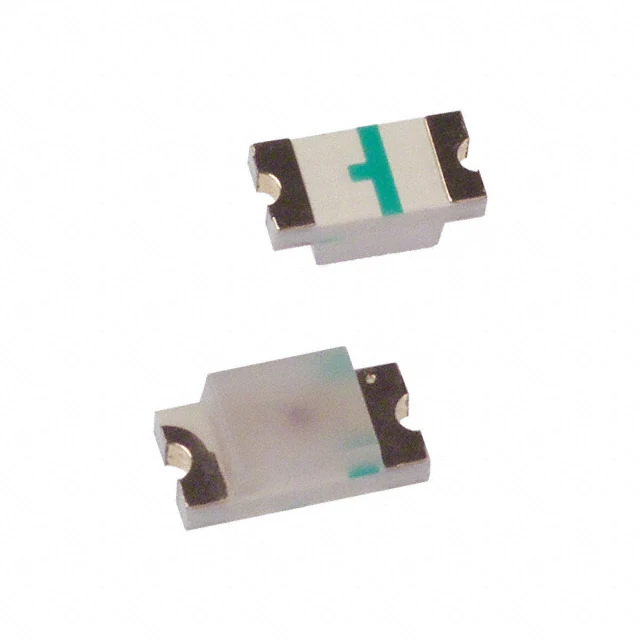

| Part Number | HSME-C150 | HSMG-C150 | HSME-C170 | HSMH-C150 | HSME-C190 | HSMF-C150 | HSML-C150 | HSMA-C150 | HSMB-C150 | HSMC-C150 | HSMD-C150 | HSME-C110 | HSME-C120 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| Color | Green | Green | Green | Red | Green | Green, Red | Orange | Amber | Blue | Red | Orange | Green | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard | Independent | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | White | White | White | White | White | White | White | White | White | White | White | Colorless | Colorless |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Clear | Clear |
| Millicandela Rating | 50mcd | 15mcd | 50mcd | 17mcd | 50mcd | 45mcd Green, 79mcd Red | 90mcd | 90mcd | 6mcd | 90mcd | 8mcd | 52mcd | 52mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 1.40mm x 1.25mm | 2.00mm x 1.60mm | 1.00mm x 0.80mm | 2.06mm x 2.70mm | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 2.00mm x 1.00mm | 1.20mm x 0.60mm |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.2V | 2.1V | 1.8V | 2.1V | 2.1V Green, 2V Red | 1.9V | 1.9V | 3.8V | 1.9V | 2.2V | 2.1V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA Green, 20mA Red | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 170° | 170° | 170° | 170° | 170° | 170° | 170° | 170° | 170° | 170° | 170° | 130° | 155° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Right Angle |
| Wavelength - Dominant | 572nm | 572nm | 572nm | 639nm | 572nm | 572nm Green, 632nm Red | 605nm | 592nm | 466nm | 626nm | 604nm | 572nm | 572nm |
| Wavelength - Peak | 570nm | 570nm | 570nm | 660nm | 570nm | 570nm Green, 644nm Red | 609nm | 595nm | 428nm | 637nm | 605nm | 570nm | 570nm |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 0805 (2012 Metric) | 1206 (3216 Metric) | 0603 (1608 Metric) | 4-SMD, No Lead | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | Chip LED | Chip LED | 0805 | Chip LED | 0603 | SMD | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 2.00mm L x 1.25mm W | 3.20mm L x 1.60mm W | 1.60mm L x 0.80mm W | 3.20mm L x 2.70mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.50mm W | 1.60mm L x 1.00mm W |
| Height (Max) | 1.10mm | 1.10mm | 0.90mm | 1.10mm | 0.90mm | 1.20mm | 1.10mm | 1.10mm | 1.10mm | 1.10mm | 1.10mm | 1.00mm | 0.60mm |
