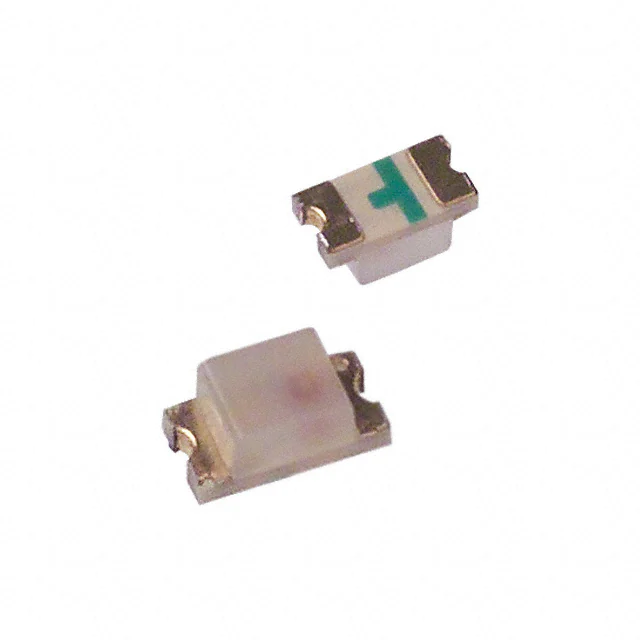

| Part Number | HSMD-C190 | HSMG-C190 | HSMH-C190 | HSME-C190 | HSMD-C197 | HSMD-C191 | HSMA-C190 | HSMB-C190 | HSMC-C190 | HSMD-C110 | HSMD-C120 | HSMD-C150 | HSMD-C170 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Obsolete | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active |
| Color | Orange | Green | Red | Green | Orange | Orange | Amber | Blue | Red | Orange | Orange | Orange | Orange |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | White | White | White | White | White | White | White | Colorless | White | Colorless | Colorless | White | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Clear | Diffused | Clear | Clear | Diffused | Diffused |
| Millicandela Rating | 8mcd | 15mcd | 17mcd | 50mcd | 8mcd | 8mcd | 90mcd | 6mcd | 90mcd | 8mcd | 8mcd | 8mcd | 8mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.00mm x 1.60mm | 1.00mm x 0.80mm | 1.00mm x 0.80mm | 1.00mm x 0.80mm | 1.60mm x 0.80mm | 1.00mm x 0.80mm | 1.00mm x 0.80mm | 1.00mm x 0.80mm | 1.00mm x 0.80mm | 2.00mm x 1.00mm | 1.20mm x 0.60mm | 2.00mm x 1.60mm | 1.40mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 1.8V | 2.1V | 2.2V | 2.2V | 1.9V | 3.8V | 1.9V | 2.2V | 2.2V | 2.2V | 2.2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 170° | 170° | 170° | 170° | 170° | 170° | 170° | 170° | 170° | 130° | 155° | 170° | 170° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount | Surface Mount |
| Wavelength - Dominant | 604nm | 572nm | 639nm | 572nm | 604nm | 604nm | 592nm | 466nm | 626nm | 604nm | 604nm | 604nm | 604nm |
| Wavelength - Peak | 605nm | 570nm | 660nm | 570nm | 605nm | 605nm | 595nm | 428nm | 637nm | 605nm | 605nm | 605nm | 605nm |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 2-SMD, No Lead | 2-SMD, No Lead | 1206 (3216 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | 0603 | 0603 | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 3.20mm L x 1.50mm W | 1.60mm L x 1.00mm W | 3.20mm L x 1.60mm W | 2.00mm L x 1.25mm W |
| Height (Max) | 0.80mm | 0.80mm | 0.80mm | 0.90mm | 0.40mm | 0.60mm | 0.90mm | 0.80mm | 0.80mm | 1.00mm | 0.60mm | 1.10mm | 0.80mm |
