Please send RFQ , we will respond immediately.

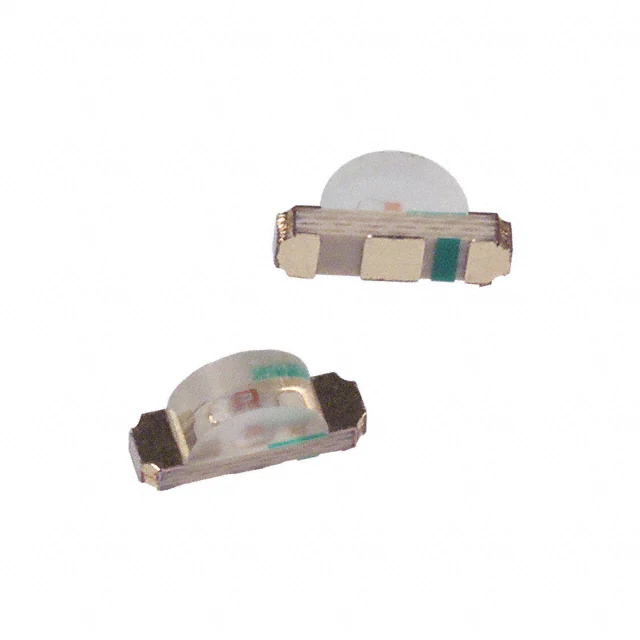

| Part Number | HSMC-C110 | HSMG-C110 | HSMC-C130 | HSMD-C110 | HSME-C110 | HSMC-C190 | HSMC-C150 | HSMC-C120 | HSMC-C170 | HSMA-C110 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Color | Red | Green | Red | Orange | Green | Red | Red | Red | Red | Amber |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | White | White | Colorless | Colorless | White | White | Colorless | White | White |
| Lens Transparency | Clear | Diffused | Diffused | Clear | Clear | Diffused | Diffused | Clear | Diffused | Diffused |
| Millicandela Rating | 95mcd | 15mcd | 131mcd | 8mcd | 52mcd | 90mcd | 90mcd | 90mcd | 90mcd | 95mcd |
| Lens Style | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm | 2.60mm x 1.00mm | 1.15mm x 0.80mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 1.00mm x 0.80mm | 2.00mm x 1.60mm | 1.20mm x 0.60mm | 1.40mm x 1.25mm | 2.60mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 1.9V | 2.2V | 1.94V | 2.2V | 2.1V | 1.9V | 1.9V | 1.9V | 1.9V | 1.9V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 110° | 130° | 130° | 170° | 170° | 155° | 170° | 130° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount | Surface Mount, Right Angle | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Right Angle | Surface Mount | Surface Mount, Right Angle |
| Wavelength - Dominant | 626nm | 572nm | 626nm | 604nm | 572nm | 626nm | 626nm | 626nm | 626nm | 592nm |
| Wavelength - Peak | 637nm | 570nm | 635nm | 605nm | 570nm | 637nm | 637nm | 637nm | 637nm | 595nm |
| Features | - | - | - | - | - | - | - | - | - | - |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 0603 (1608 Metric) | 2-SMD, No Lead | 2-SMD, No Lead | 0603 (1608 Metric) | 1206 (3216 Metric) | 2-SMD, No Lead | 0805 (2012 Metric) | 2-SMD, No Lead |
| Supplier Device Package | Chip LED | Chip LED | 0603 | Chip LED | Chip LED | Chip LED | Chip LED | - | Chip LED | Chip LED |
| Size / Dimension | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W | 1.60mm L x 0.80mm W | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W | 1.60mm L x 0.80mm W | 3.20mm L x 1.60mm W | 1.60mm L x 1.00mm W | 2.00mm L x 1.25mm W | 3.20mm L x 1.50mm W |
| Height (Max) | 1.00mm | 1.00mm | 0.35mm | 1.00mm | 1.00mm | 0.80mm | 1.10mm | 0.60mm | 0.80mm | 1.00mm |
