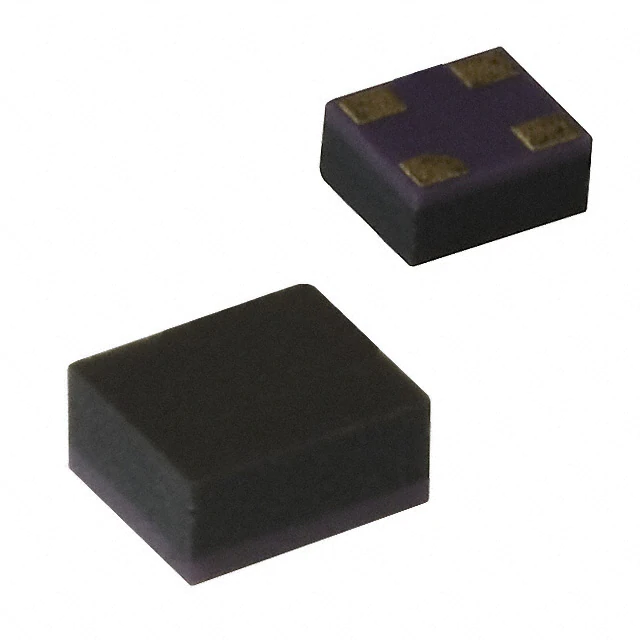

| Part Number | HMPP-3895-TR2 | HMPP-389T-TR2 | HMPP-3865-TR2 | HMPP-3890-TR2 | HMPP-3892-TR2 | HMPP-3895-TR1 |
|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | PIN - 2 Independent | PIN - Single | PIN - 2 Independent | PIN - Single | PIN - 2 Independent | PIN - 2 Independent |
| Voltage - Peak Reverse (Max) | 100V | 100V | 50V | 100V | 100V | 100V |
| Current - Max | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Capacitance @ Vr, F | 0.3pF @ 5V, 1MHz | 0.3pF @ 5V, 1MHz | 0.2pF @ 50V, 1MHz | 0.3pF @ 5V, 1MHz | 0.3pF @ 5V, 1MHz | 0.3pF @ 5V, 1MHz |
| Resistance @ If, F | 2.5Ohm @ 5mA, 100MHz | 2.5Ohm @ 5mA, 100MHz | 22Ohm @ 1mA, 100MHz | 2.5Ohm @ 5mA, 100MHz | 2.5Ohm @ 5mA, 100MHz | 2.5Ohm @ 5mA, 100MHz |
| Power Dissipation (Max) | - | - | - | - | - | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Package / Case | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) |
| Supplier Device Package | MiniPak 1412 | MiniPak 1412 | MiniPak 1412 | MiniPak 1412 | MiniPak 1412 | MiniPak 1412 |
