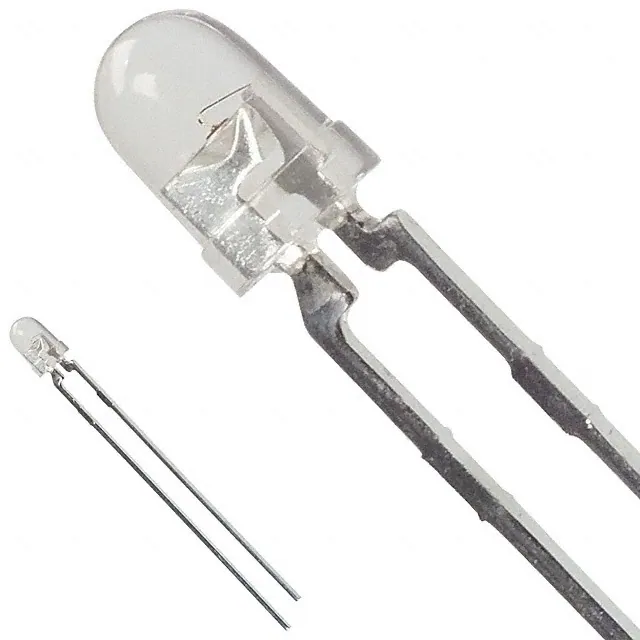

| Part Number | HLMP-K105 | HLMP-K155 | HLMPK105 | HLMP-D105 | HLMP-K101 |
|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Everlight Electronics Co Ltd | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active |
| Color | Red | Red | Red | Red | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Red | Colorless | Red |
| Lens Transparency | Clear | Clear | Clear | Clear | Diffused |
| Millicandela Rating | 65mcd | 3mcd | 65mcd | 240mcd | 45mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 5mm, T-1 3/4 | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 1.8V | 1.6V | 1.8V | 1.8V | 1.8V |
| Current - Test | 20mA | 1mA | 20mA | 20mA | 20mA |
| Viewing Angle | 45° | 45° | 35° | 24° | 60° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 637nm | 637nm | - | 637nm | 637nm |
| Wavelength - Peak | 645nm | 645nm | 660nm | 645nm | 645nm |
| Features | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | T-1 | T-1 | T-1 | T-1 3/4 | T-1 |
| Size / Dimension | - | - | - | - | - |
| Height (Max) | 6.35mm | 6.35mm | 6.30mm | 12.44mm | 6.35mm |
