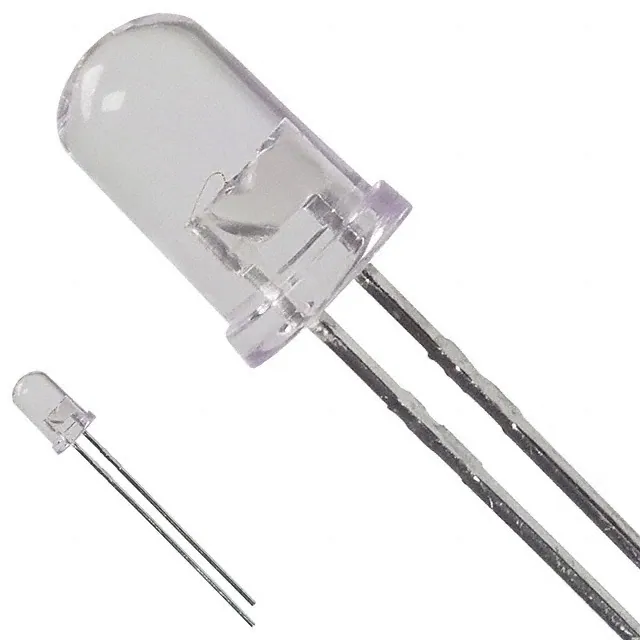

| Part Number | HLMP-ED31-SV000 | HLMP-EH31-SV000 | HLMP-EL31-SV000 | HLMP-ED33-SV000 |
|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Red | Red | Amber | Red |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear |
| Millicandela Rating | 3700mcd | 3700mcd | 3700mcd | 3700mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.4V | 2.35V | 2.3V | 2.4V |
| Current - Test | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 30° | 30° | 30° | 30° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 630nm | 617nm | 592nm | 630nm |
| Wavelength - Peak | 639nm | 623nm | 594nm | 639nm |
| Features | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial |
| Supplier Device Package | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 |
| Size / Dimension | - | - | - | - |
| Height (Max) | 8.91mm | 8.91mm | 8.91mm | 11.24mm |
