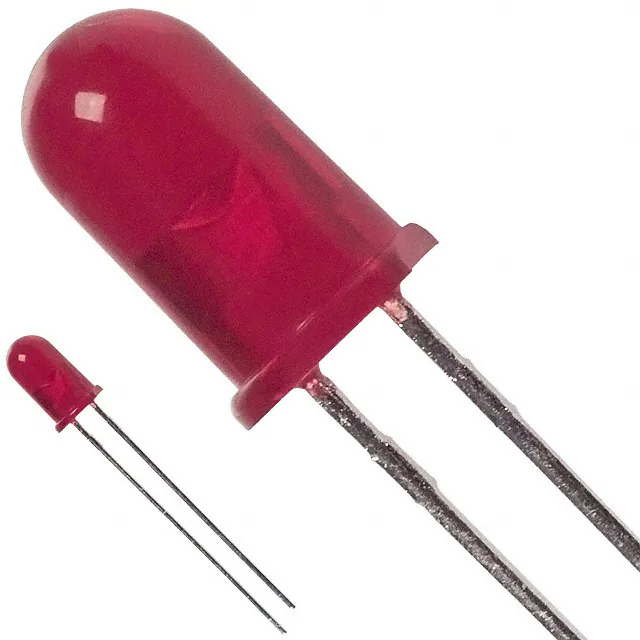

| Part Number | HLMP-D101 | HLMP-K101 | HLMP-D401 | HLMP-D105 |
|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active |
| Color | Red | Red | Orange | Red |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | Red | Red | Orange | Colorless |
| Lens Transparency | Diffused | Diffused | Diffused | Clear |
| Millicandela Rating | 70mcd | 45mcd | 5.4mcd | 240mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 3mm, T-1 | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 1.8V | 1.8V | 1.9V | 1.8V |
| Current - Test | 20mA | 20mA | 10mA | 20mA |
| Viewing Angle | 65° | 60° | 60° | 24° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 637nm | 637nm | 602nm | 637nm |
| Wavelength - Peak | 645nm | 645nm | 600nm | 645nm |
| Features | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial |
| Supplier Device Package | T-1 3/4 | T-1 | T-1 3/4 | T-1 3/4 |
| Size / Dimension | - | - | - | - |
| Height (Max) | 9.19mm | 6.35mm | 9.19mm | 12.44mm |
