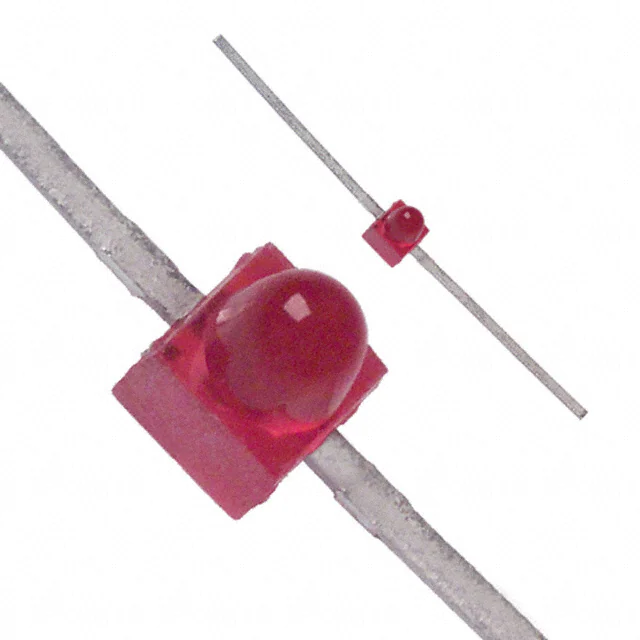

| Part Number | HLMP-6620 | HLMP-6820 | HLMP-6720 | HLMP-1620 | HLMP-6600 |
|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active |
| Color | Red | Green | Yellow | Yellow | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Red | Green | Yellow | Yellow | Red |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 2mcd | 2mcd | 2mcd | 2.2mcd | 5mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 1.91mm Dia | 1.91mm Dia | 1.78mm Dia | 3mm, T-1 | 1.78mm Dia |
| Voltage - Forward (Vf) (Typ) | 5V | 5V | 5V | 5V | 5V |
| Current - Test | 10mA | 10mA | 10mA | 10mA | 10mA |
| Viewing Angle | 90° | 90° | 90° | 60° | 90° |
| Mounting Type | Through Hole, Axial | Through Hole, Axial | Through Hole, Axial | Through Hole | Through Hole, Axial |
| Wavelength - Dominant | 626nm | 569nm | 585nm | 585nm | 626nm |
| Wavelength - Peak | 635nm | 565nm | 583nm | 583nm | 635nm |
| Features | - | - | - | - | - |
| Package / Case | Axial, Flat Leads | Axial, Flat Leads | Axial, Flat Leads | Radial | Axial, Flat Leads |
| Supplier Device Package | Axial | Axial | Axial | T-1 | Axial |
| Size / Dimension | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | - | 2.08mm L x 2.21mm W |
| Height (Max) | 2.92mm | 2.92mm | 2.92mm | 6.35mm | 2.92mm |
