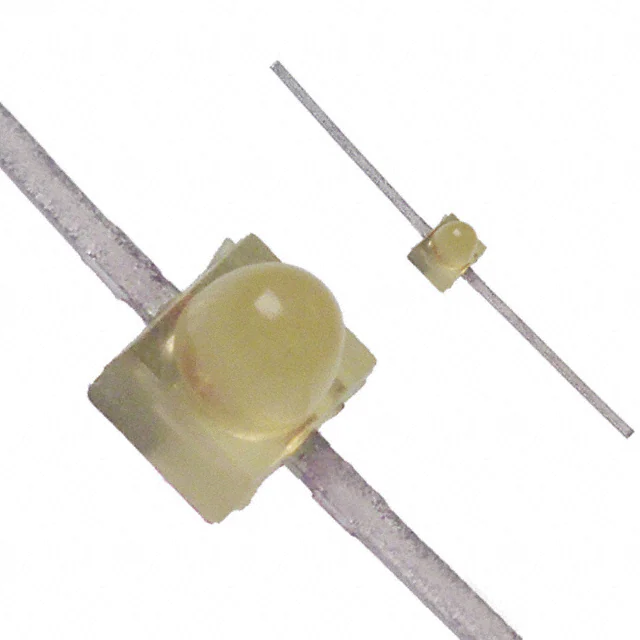

| Part Number | HLMP-6400 | HLMP-6500 | HLMP-6405 | HLMP-6600 | HLMP-6800 | HLMP-6000 | HLMP-6300 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Color | Yellow | Green | Yellow | Red | Green | Red | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Yellow | Green | Colorless | Red | Green | Red | Red |
| Lens Transparency | Diffused | Diffused | Clear | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 9mcd | 7mcd | 20mcd | 5mcd | 5mcd | 1.2mcd | 10mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 1.91mm Dia | 1.91mm Dia | 1.91mm Dia | 1.78mm Dia | 1.78mm Dia | 1.91mm Dia | 1.91mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V | 2.1V | 2V | 5V | 5V | 1.6V | 1.8V |
| Current - Test | 10mA | 10mA | 10mA | 10mA | 10mA | 10mA | 10mA |
| Viewing Angle | 90° | 90° | 28° | 90° | 90° | 90° | 90° |
| Mounting Type | Through Hole, Axial | Through Hole, Axial | Through Hole, Axial | Through Hole, Axial | Through Hole, Axial | Through Hole, Axial | Through Hole, Axial |
| Wavelength - Dominant | 585nm | 569nm | 585nm | 626nm | 569nm | 640nm | 626nm |
| Wavelength - Peak | 583nm | 565nm | 583nm | 635nm | 565nm | 655nm | 635nm |
| Features | - | - | - | - | - | - | - |
| Package / Case | Axial, Flat Leads | Axial, Flat Leads | Axial, Flat Leads | Axial, Flat Leads | Axial, Flat Leads | Axial, Flat Leads | Axial, Flat Leads |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W |
| Height (Max) | 2.92mm | 2.92mm | 2.92mm | 2.92mm | 2.92mm | 2.92mm | 2.92mm |
