Please send RFQ , we will respond immediately.

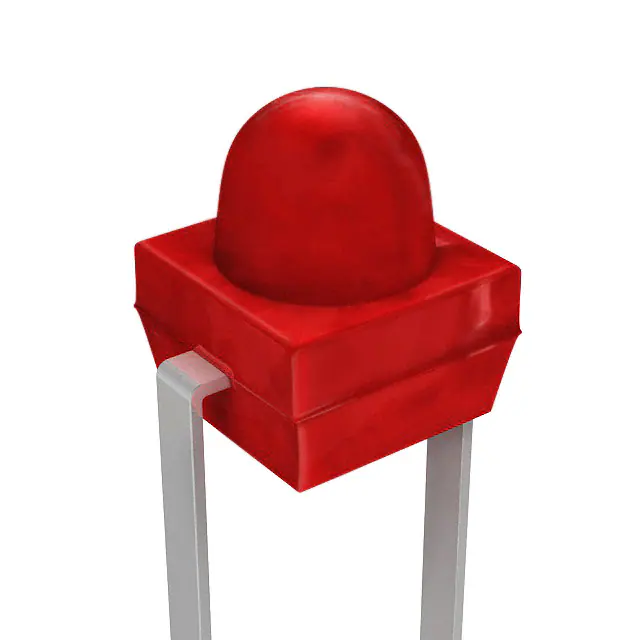

| Part Number | HLMP-6300-F001S | HLMP-6500-F001S | HLMP-6300-F0011 |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active |
| Color | Red | Green | Red |
| Configuration | Standard | Standard | Standard |
| Lens Color | Red | Green | Red |
| Lens Transparency | Diffused | Diffused | Diffused |
| Millicandela Rating | 10mcd | 7mcd | 10mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 1.78mm Dia | 1.78mm Dia | 1.78mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.8V | 2.1V | 1.8V |
| Current - Test | 10mA | 10mA | 10mA |
| Viewing Angle | 90° | 90° | 90° |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Wavelength - Dominant | 626nm | 569nm | 626nm |
| Wavelength - Peak | 635nm | 565nm | 635nm |
| Features | - | - | - |
| Package / Case | Axial, Right Angle Bend (2.54mm Center) | Axial, Right Angle Bend (2.54mm Center) | 2-SMD, Gull Wing |
| Supplier Device Package | Axial | Axial | Gull Wing |
| Size / Dimension | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W |
| Height (Max) | 2.92mm | 2.92mm | 2.92mm |
