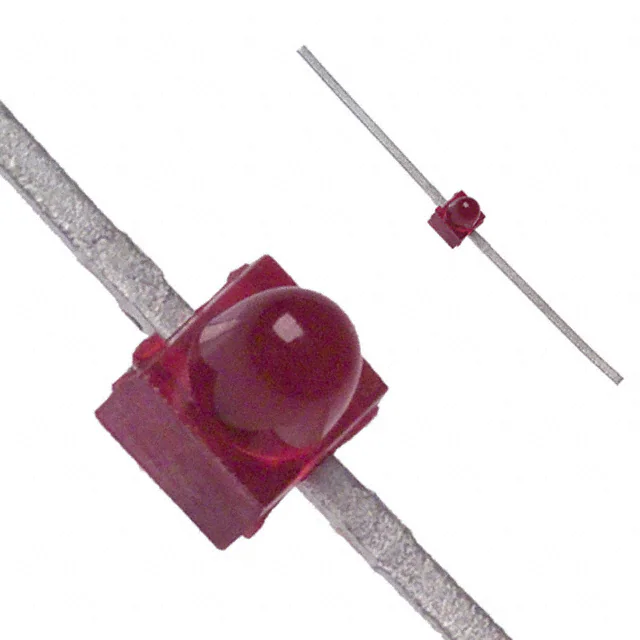

| Part Number | HLMP-6000 | HLMP-6400 | HLMP-6500 | HLMP-7000 | HLMP-6300 | HLMP-6600 | HLMP-6800 | HLMP-4000 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Color | Red | Yellow | Green | Red | Red | Red | Green | Green, Red |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Common Cathode |
| Lens Color | Red | Yellow | Green | Red | Red | Red | Green | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 1.2mcd | 9mcd | 7mcd | 1mcd | 10mcd | 5mcd | 5mcd | 4.2mcd Green, 2.1mcd Red |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 1.91mm Dia | 1.91mm Dia | 1.91mm Dia | 1.91mm Dia | 1.91mm Dia | 1.78mm Dia | 1.78mm Dia | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 1.6V | 2V | 2.1V | 1.8V | 1.8V | 5V | 5V | 2.2V Green, 1.9V Red |
| Current - Test | 10mA | 10mA | 10mA | 2mA | 10mA | 10mA | 10mA | 10mA Green, 10mA Red |
| Viewing Angle | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 65° |
| Mounting Type | Through Hole, Axial | Through Hole, Axial | Through Hole, Axial | Through Hole, Axial | Through Hole, Axial | Through Hole, Axial | Through Hole, Axial | Through Hole |
| Wavelength - Dominant | 640nm | 585nm | 569nm | 626nm | 626nm | 626nm | 569nm | 570nm Green, 626nm Red |
| Wavelength - Peak | 655nm | 583nm | 565nm | 635nm | 635nm | 635nm | 565nm | 568nm Green, 635nm Red |
| Features | - | - | - | - | - | - | - | - |
| Package / Case | Axial, Flat Leads | Axial, Flat Leads | Axial, Flat Leads | Axial, Flat Leads | Axial, Flat Leads | Axial, Flat Leads | Axial, Flat Leads | Radial - 3 Leads |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | T-1 3/4 |
| Size / Dimension | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | 2.08mm L x 2.21mm W | - |
| Height (Max) | 2.92mm | 2.92mm | 2.92mm | 2.92mm | 2.92mm | 2.92mm | 2.92mm | 9.19mm |
