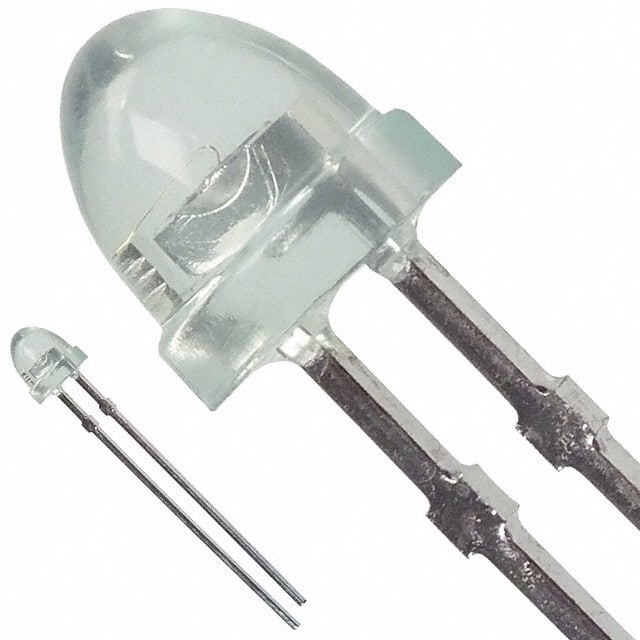

| Part Number | HLMP-3590 | HLMP-3390 | HLMP-3490 |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active |
| Color | Green | Red | Yellow |
| Configuration | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear |
| Millicandela Rating | 55mcd | 55mcd | 55mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.2V | 1.9V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA |
| Viewing Angle | 24° | 24° | 24° |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 569nm | 626nm | 585nm |
| Wavelength - Peak | 565nm | 635nm | 583nm |
| Features | - | - | - |
| Package / Case | Radial | Radial | Radial |
| Supplier Device Package | - | T-1 3/4 | T-1 3/4 |
| Size / Dimension | - | - | - |
| Height (Max) | 10.90mm | 10.90mm | 10.90mm |
