Please send RFQ , we will respond immediately.

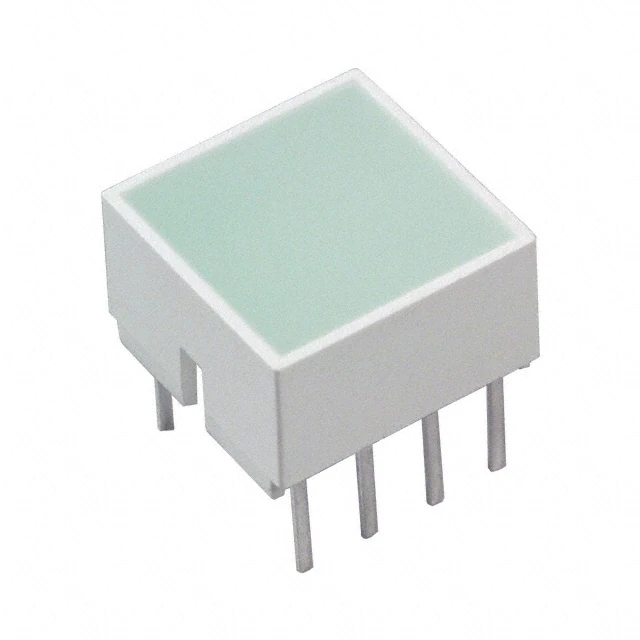

| Part Number | HLMP-2855 | HLMP-2885 | HLMP-2655 | HLMP-2755 | HLMP-2835 |
|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Obsolete |
| Color | Green | Green | Red | Yellow | Green (x 2) |
| Wavelength - Peak | 565nm | 565nm | 634nm | 583nm | 565nm |
| Configuration | Bar - Single, DIP | Bar - Single, DIP | Bar - Single, DIP | Bar - Single, DIP | Bar - 2 High, DIP |
| Current | 30mA | 30mA | 90mA | 25mA | 20mA |
| Millicandela Rating | 50mcd | 100mcd | 45mcd | 70mcd | 50mcd |
| Viewing Angle | - | - | - | - | - |
| Lens Type | - | - | - | - | - |
| Lens Style | Square with Flat Top | Rectangle with Flat Top | Square with Flat Top | Square with Flat Top | - |
| Lens Size | 8.89mm | 19.05mm x 8.89mm | 8.89mm | 8.89mm | - |
| Voltage Rating | 2.2V | 2.2V | 2V | 2.1V | 2.2V |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
