Please send RFQ , we will respond immediately.

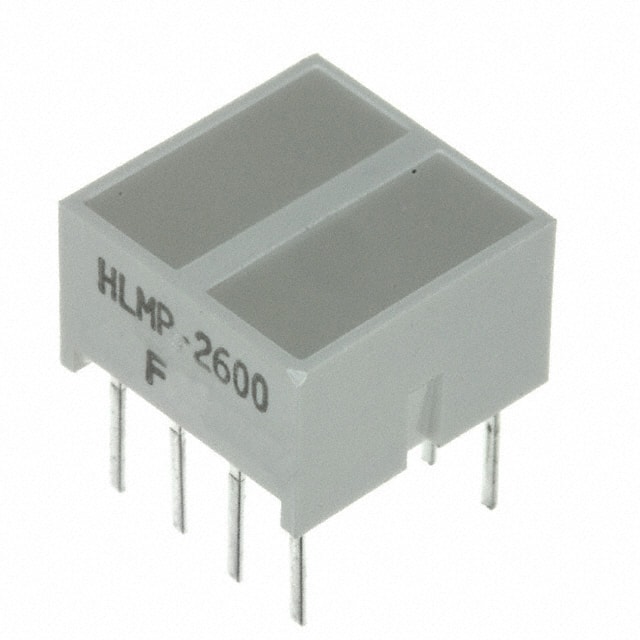

| Part Number | HLMP-2600 | HLMP-2800 | HLMP-2700 | HLMP-2620 | HLMP-2300 | HLMP-2400 | HLMP-2500 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Color | Red (x 2) | Green (x 2) | Yellow (x 2) | Red (x 4) | Red | Yellow | Green |
| Wavelength - Peak | 635nm | 565nm | 583nm | 635nm | 634nm | 583nm | 565nm |
| Configuration | Bar - 2 Wide, DIP | Bar - 2 Wide, DIP | Bar - 2 Wide, DIP | Bar - 4 Wide, DIP | Bar - Single, SIP | Bar - Single, SIP | Bar - Single, SIP |
| Current | 30mA | 30mA | 20mA | 30mA | 30mA | 25mA | 30mA |
| Millicandela Rating | 23mcd | 25mcd | 20mcd | 23mcd | 23mcd | 20mcd | 25mcd |
| Viewing Angle | - | - | - | - | - | - | - |
| Lens Type | - | - | - | - | - | - | - |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | - | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 8.89mm x 3.81mm | 8.89mm x 3.81mm | - | 8.89mm x 3.81mm | 8.89mm x 3.81mm | 8.89mm x 3.81mm | 8.89mm x 3.81mm |
| Voltage Rating | 2.6V | 2.6V | 2.1V | 2V | 2V | 2.1V | 2.2V |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
