Please send RFQ , we will respond immediately.

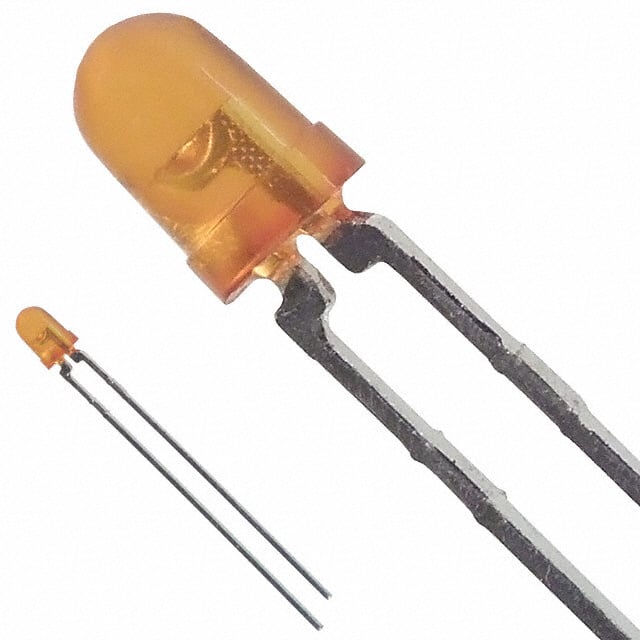

| Part Number | HLMP-1621 | HLMP-1641 | HLMP-1321 | HLMP-1421 | HLMP-1521 | HLMP-1601 | HLMP-1620 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Color | Yellow | Green | Red | Yellow | Green | Red | Yellow |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Yellow | Green | Red | Yellow | Green | Red | Yellow |
| Lens Transparency | Diffused | Diffused | Clear | Clear | Clear | Diffused | Diffused |
| Millicandela Rating | 2.2mcd | 1.6mcd | 30mcd | 15mcd | 22mcd | 2.1mcd | 2.2mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 12V | 12V | 1.9V | 2V | 2.1V | 12V | 5V |
| Current - Test | 13mA | 13mA | 10mA | 10mA | 10mA | 13mA | 10mA |
| Viewing Angle | 60° | 60° | 45° | 45° | 45° | 60° | 60° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 585nm | 569nm | 626nm | 585nm | 569nm | 626nm | 585nm |
| Wavelength - Peak | 583nm | 565nm | 635nm | 583nm | 565nm | 635nm | 583nm |
| Features | - | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | T-1 | T-1 | T-1 | T-1 | T-1 | T-1 | T-1 |
| Size / Dimension | - | - | - | - | - | - | - |
| Height (Max) | 6.35mm | 6.35mm | 6.35mm | 6.35mm | 6.35mm | 6.35mm | 6.35mm |
