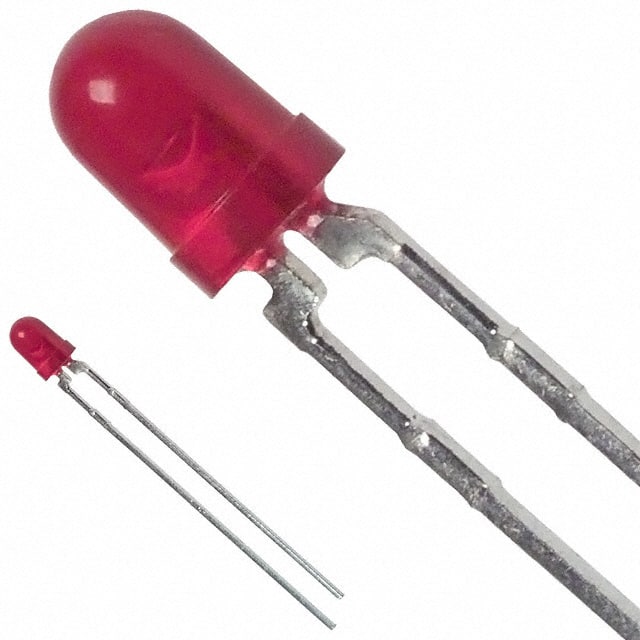

| Part Number | HLMP-1301 | HLMP-3301 | HLMP-1321 | HLMP-1401 | HLMP-1601 | HLMP-0301 |
|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active |
| Color | Red | Red | Red | Yellow | Red | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Red | Red | Red | Yellow | Red | Red |
| Lens Transparency | Diffused | Diffused | Clear | Diffused | Diffused | Diffused |
| Millicandela Rating | 3.4mcd | 5.4mcd | 30mcd | 2.2mcd | 2.1mcd | 2.1mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Rectangle with Flat Top |
| Lens Size | 3mm, T-1 | 5mm, T-1 3/4 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 7.31mm x 2.35mm |
| Voltage - Forward (Vf) (Typ) | 1.9V | 1.9V | 1.9V | 2V | 12V | 1.9V |
| Current - Test | 10mA | 10mA | 10mA | 10mA | 13mA | 20mA |
| Viewing Angle | 60° | 60° | 45° | 60° | 60° | 100° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 626nm | 626nm | 626nm | 585nm | 626nm | 626nm |
| Wavelength - Peak | 635nm | 635nm | 635nm | 583nm | 635nm | 635nm |
| Features | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | T-1 (3mm) | T-1 3/4 | T-1 | T-1 | T-1 | Rectangular |
| Size / Dimension | - | - | - | - | - | - |
| Height (Max) | 6.35mm | 9.19mm | 6.35mm | 6.35mm | 6.35mm | 8.00mm |
