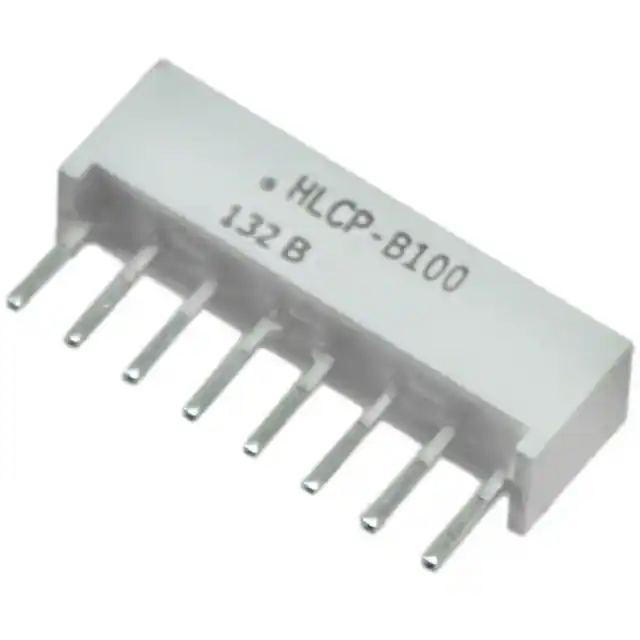

| Part Number | HLCP-B100 | HLCP-J100 | HLCP-C100 | HLCP-E100 | HLCP-A100 |
|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active |
| Color | Red | Red (x 10) | Red | Red (x 4) | Red |
| Wavelength - Peak | 645nm | 645nm | 645nm | 645nm | 645nm |
| Configuration | Bar - Single, SIP | Bar - 10 Wide, DIP | Bar - Single, SIP | Bar - 4 Wide, DIP | Bar - Single, SIP |
| Current | 20mA | 15mA | 20mA | 15mA | 15mA |
| Millicandela Rating | 15mcd | 1mcd | 15mcd | 7.5mcd | 7.5mcd |
| Viewing Angle | - | - | - | - | - |
| Lens Type | - | - | - | - | - |
| Lens Style | Rectangle with Flat Top | - | - | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | - | - | - | 8.89mm x 3.81mm | 8.89mm x 3.81mm |
| Voltage Rating | 1.8V | 1.6V | 1.8V | 1.8V | 1.8V |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
