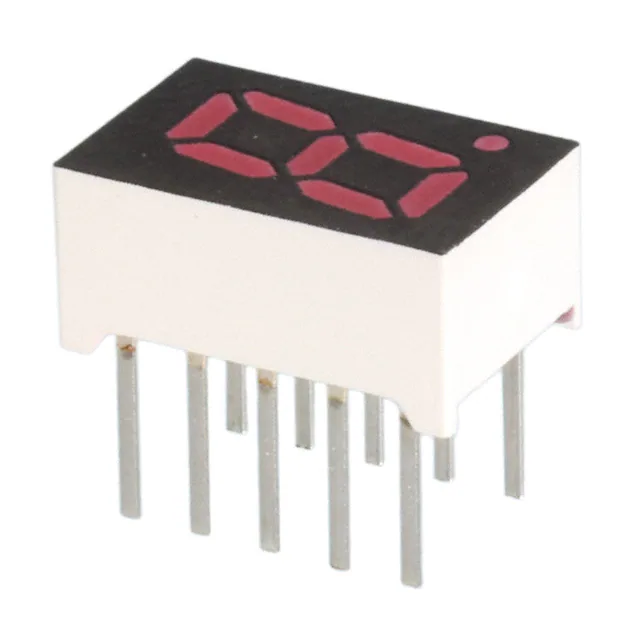

| Part Number | HDSP-U113 | HDSP-U513 | HDSP-U313 |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active |
| Display Format | - | - | - |
| Number of Characters | 1 | 1 | 1 |
| Size / Dimension | 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) | 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) | 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) |
| Digit/Alpha Size | 0.31" (8.00mm) | 0.31" (8.00mm) | 0.31" (8.00mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Cathode |
| Color | Red | Green | Yellow |
| Voltage - Forward (Vf) (Typ) | 1.7V | 2.1V | 2.2V |
| Current - Test | 5mA | 10mA | 20mA |
| Millicandela Rating | 3.6mcd | 6.8mcd | 2.74mcd |
| Wavelength - Peak | 645nm | 566nm | 583nm |
| Power Dissipation (Max) | 37mW | 105mW | 80mW |
| Package / Case | 10-DIP (0.209", 5.30mm) | 10-DIP (0.209", 5.30mm) | 10-DIP (0.209", 5.30mm) |
