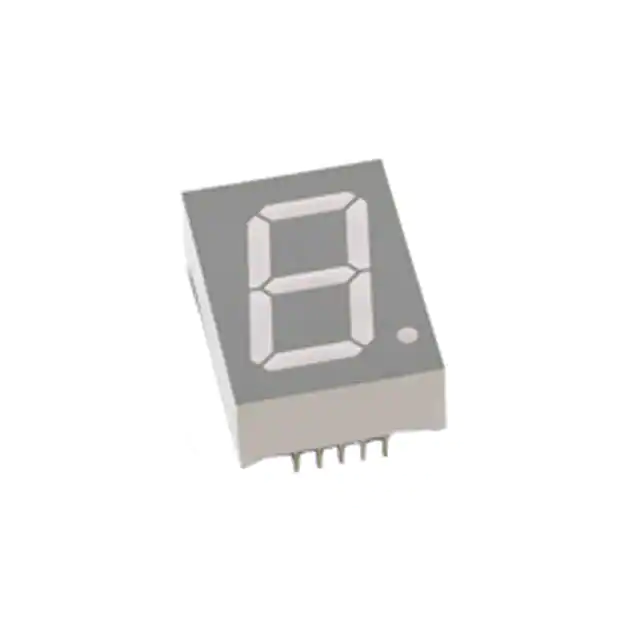

| Part Number | HDSP-H1E1 | HDSP-H3E1 | HDSP-H5E1 | HDSP-H8E1 | HDSP-H1E3 | HDSP-H1G1 | HDSP-H2E1 | HDSP-H101 | HDSP-H151 | HDSP-H1A1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Display Format | - | - | - | - | - | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) | 0.551" H x 0.295" W x 0.335" D (14.00mm x 7.50mm x 8.50mm) | 0.693" H x 0.488" W x 0.272" D (17.60mm x 12.40mm x 6.90mm) | 1.091" H x 0.787" W x 0.394" D (27.70mm x 20.00mm x 10.00mm) | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) | 2.744" H x 1.882" W x 0.472" D (69.70mm x 47.80mm x 12.00mm) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) |
| Digit/Alpha Size | 1.00" (25.40mm) | 0.36" (9.14mm) | 0.52" (13.21mm) | 0.80" (20.32mm) | 1.00" (25.40mm) | 1.00" (25.40mm) | 2.30" (58.42mm) | 0.56" (14.22mm) | 0.56" (14.22mm) | 1.00" (25.40mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Anode | Common Anode | Common Cathode | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode |
| Color | Red | Red | Red | Red | Red | Green | Red | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2V | 2V | 2V | 2V | 4V | 1.7V | 1.8V | 2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 5mA | 20mA | 20mA |
| Millicandela Rating | 70mcd | 15mcd | 40mcd | 30mcd | 70mcd | 25mcd | 105mcd | 4.2mcd | 16mcd | 70mcd |
| Wavelength - Peak | 634nm | 634nm | 634nm | 634nm | 634nm | 570nm | 634nm | 645nm | 645nm | 644nm |
| Power Dissipation (Max) | 104mW | 52mW | 52mW | 52mW | 104mW | 104mW | 208mW | 37mW | 96mW | 104mW |
| Package / Case | 10-DIP (1.200", 30.48mm) | 10-DIP (0.200", 5.08mm) | 10-DIP (0.600", 15.24mm) | 16-DIP (0.600", 15.24mm) | 10-DIP (1.200", 30.48mm) | 10-DIP (1.200", 30.48mm) | 10-DIP (2.370", 60.20mm) | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) | 10-DIP (1.200", 30.48mm) |
