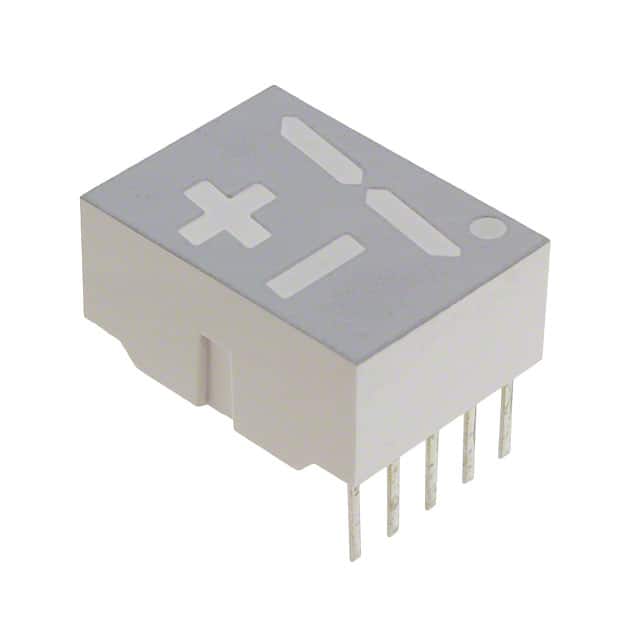

| Part Number | HDSP-H108 | HDSP-H101 | HDSP-H103 |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active |
| Display Format | - | - | - |
| Number of Characters | +/-1 (overflow) | 1 | 1 |
| Size / Dimension | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Anode | Common Cathode |
| Color | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 1.7V | 1.7V | 1.7V |
| Current - Test | 5mA | 5mA | 5mA |
| Millicandela Rating | 4.2mcd | 4.2mcd | 4.2mcd |
| Wavelength - Peak | 645nm | 645nm | 645nm |
| Power Dissipation (Max) | 37mW | 37mW | 37mW |
| Package / Case | 10-DIP (0.600", 15.24mm), 9 Leads | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) |
