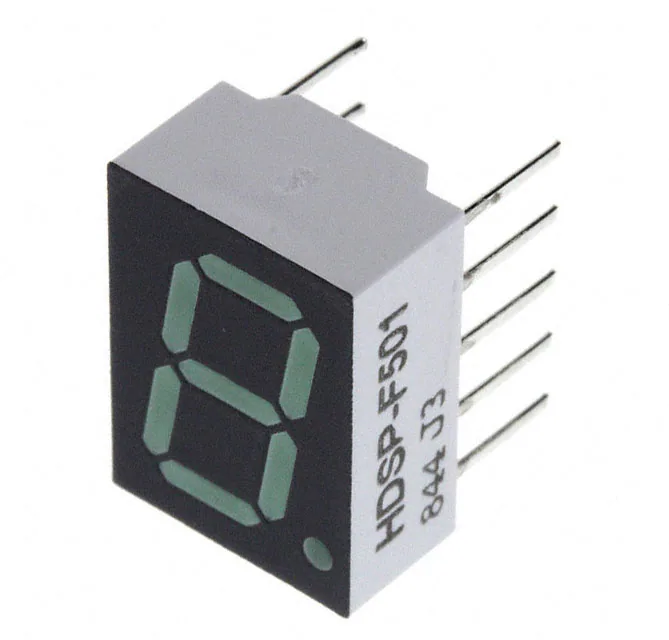

| Part Number | HDSP-F501 | HDSP-F503 | HDSP-U501 | HDSP-5501 | HDSP-7501 | HDSP-F101 | HDSP-F201 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) |
| Digit/Alpha Size | 0.40" (10.16mm) | 0.40" (10.16mm) | 0.31" (8.00mm) | 0.56" (14.22mm) | 0.30" (7.62mm) | 0.40" (10.16mm) | 0.40" (10.16mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Cathode | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode |
| Color | Green | Green | Green | Red | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V | 2.1V | 2V | 1.7V | 2V |
| Current - Test | 10mA | 10mA | 10mA | 20mA | 20mA | 5mA | 20mA |
| Millicandela Rating | 3.5mcd | 3.5mcd | 6.8mcd | 2.8mcd | 5.39mcd | 3.9mcd | 1.2mcd |
| Wavelength - Peak | 566nm | 566nm | 566nm | 635nm | 635nm | 645nm | 635nm |
| Power Dissipation (Max) | 105mW | 105mW | 105mW | 105mW | 105mW | 37mW | 105mW |
| Package / Case | 10-DIP (0.300", 7.62mm) | 10-DIP (0.300", 7.62mm) | 10-DIP (0.209", 5.30mm) | 10-DIP (0.600", 15.24mm) | 10-DIP (0.200", 5.08mm) | 10-DIP (0.300", 7.62mm) | 10-DIP (0.300", 7.62mm) |
