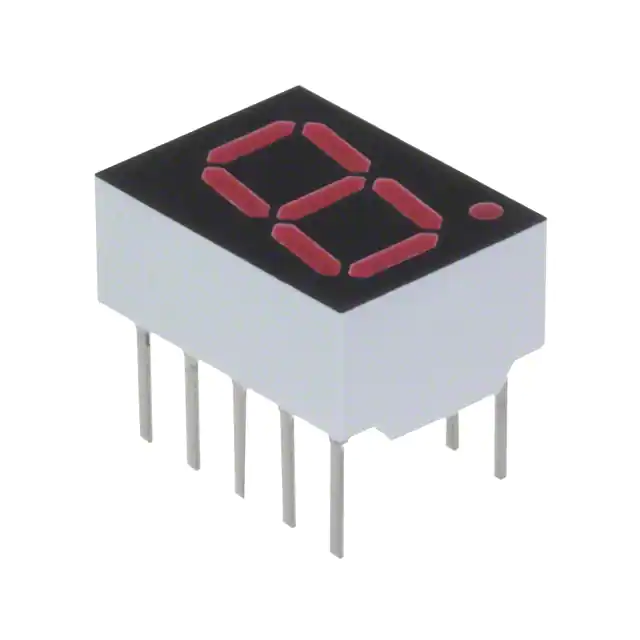

| Part Number | HDSP-F151 | HDSP-H151 | HDSP-F153 | HDSP-A151 | HDSP-F101 | HDSP-F111 |
|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) |
| Digit/Alpha Size | 0.40" (10.16mm) | 0.56" (14.22mm) | 0.40" (10.16mm) | 0.30" (7.62mm) | 0.40" (10.16mm) | 0.40" (10.16mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Cathode | Common Anode | Common Anode | Common Anode |
| Color | Red | Red | Red | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 1.8V | 1.8V | 1.8V | 1.8V | 1.7V | 1.7V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 5mA | 5mA |
| Millicandela Rating | 15mcd | 16mcd | 15mcd | 14mcd | 3.9mcd | 3.9mcd |
| Wavelength - Peak | 645nm | 645nm | 645nm | 645nm | 645nm | 645nm |
| Power Dissipation (Max) | 96mW | 96mW | 96mW | 96mW | 37mW | 37mW |
| Package / Case | 10-DIP (0.300", 7.62mm) | 10-DIP (0.600", 15.24mm) | 10-DIP (0.300", 7.62mm) | 10-DIP (0.200", 5.08mm) | 10-DIP (0.300", 7.62mm) | 10-DIP (0.300", 7.62mm) |
