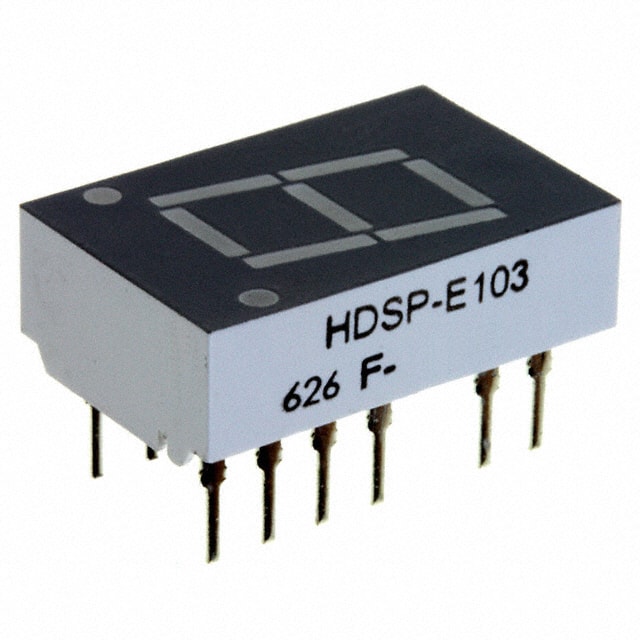

| Part Number | HDSP-E103 | HDSP-H103 | HDSP-F103 | HDSP-N103 | HDSP-A103 | HDSP-E101 |
|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) | 0.500" H x 0.300" W x 0.390" D (12.70mm x 7.62mm x 9.91mm) | 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) |
| Digit/Alpha Size | 0.43" (11.00mm) | 0.56" (14.22mm) | 0.40" (10.16mm) | 0.80" (20.32mm) | 0.30" (7.62mm) | 0.43" (11.00mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Cathode | Common Cathode | Common Cathode | Common Anode |
| Color | Red | Red | Red | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 1.7V | 1.7V | 1.7V | 1.7V | 1.7V | 1.7V |
| Current - Test | 5mA | 5mA | 5mA | 5mA | 5mA | 5mA |
| Millicandela Rating | 3.9mcd | 4.2mcd | 3.9mcd | 3.5mcd | 3.6mcd | 3.9mcd |
| Wavelength - Peak | 645nm | 645nm | 645nm | 645nm | 645nm | 645nm |
| Power Dissipation (Max) | 37mW | 37mW | 37mW | 37mW | 37mW | 37mW |
| Package / Case | 14-DIP (0.300", 7.62mm), 10 Leads | 10-DIP (0.600", 15.24mm) | 10-DIP (0.300", 7.62mm) | 18-DIP (0.600", 15.24mm), 12 Leads | 10-DIP (0.200", 5.08mm) | 14-DIP (0.300", 7.62mm), 10 Leads |
