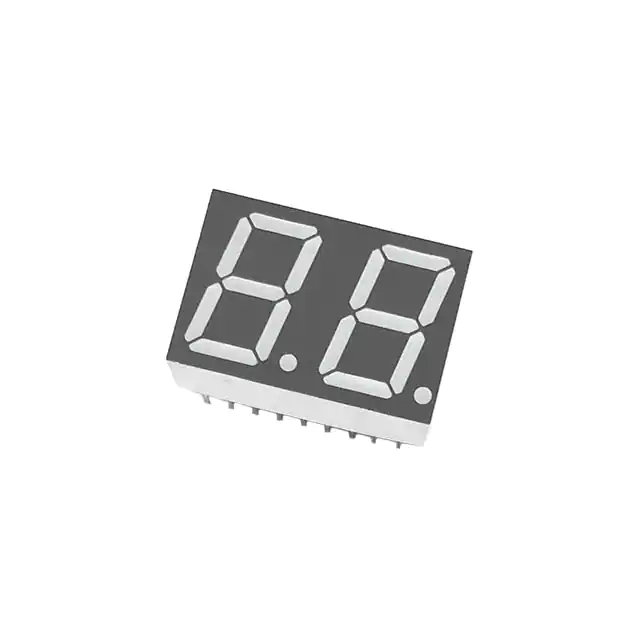

| Part Number | HDSP-5621 | HDSP-5623 | HDSP-5521 | HDSP-5601 |
|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active |
| Display Format | - | - | - | - |
| Number of Characters | 2 | 2 | 2 | 1 |
| Size / Dimension | 0.670" H x 0.990" W x 0.315" D (17.02mm x 25.15mm x 8.00mm) | 0.670" H x 0.990" W x 0.315" D (17.02mm x 25.15mm x 8.00mm) | 0.670" H x 0.990" W x 0.315" D (17.02mm x 25.15mm x 8.00mm) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Cathode | Common Anode | Common Anode |
| Color | Green | Green | Red | Green |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V | 2.1V |
| Current - Test | 10mA | 10mA | 20mA | 10mA |
| Millicandela Rating | 2.5mcd | 2.5mcd | 2.8mcd | 2.5mcd |
| Wavelength - Peak | 566nm | 566nm | 635nm | 566nm |
| Power Dissipation (Max) | 105mW | 105mW | 105mW | 105mW |
| Package / Case | 18-DIP (0.600", 15.24mm) | 18-DIP (0.600", 15.24mm) | 18-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) |
