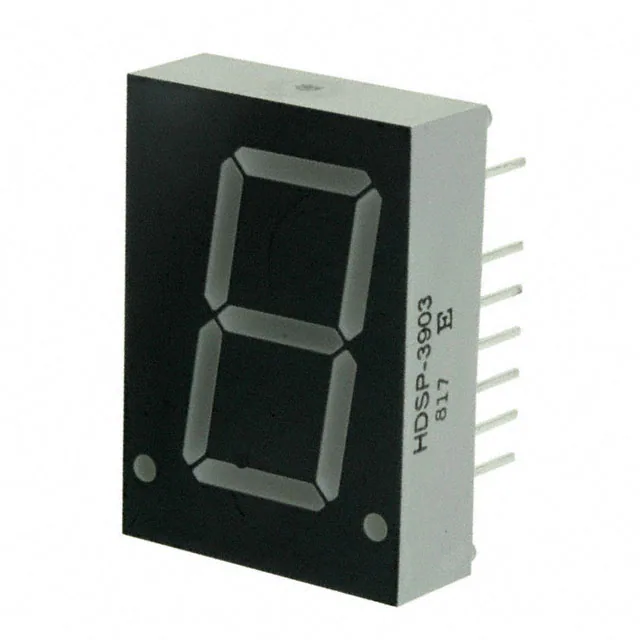

| Part Number | HDSP-3903 | HDSP-A903 | HDSP-3900 | HDSP-3901 |
|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Last Time Buy | Active |
| Display Format | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 |
| Size / Dimension | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) | 0.500" H x 0.300" W x 0.390" D (12.70mm x 7.62mm x 9.91mm) | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) |
| Digit/Alpha Size | 0.80" (20.32mm) | 0.30" (7.62mm) | 0.80" (20.32mm) | 0.80" (20.32mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Anode | Common Anode |
| Color | Red | Green | Red | Red |
| Voltage - Forward (Vf) (Typ) | 2.6V | 2V | 2.6V | 2.6V |
| Current - Test | 100mA | 10mA | 100mA | 100mA |
| Millicandela Rating | 7mcd | 1.5mcd | 7mcd | 7mcd |
| Wavelength - Peak | 635nm | 566nm | 635nm | 635nm |
| Power Dissipation (Max) | 105mW | 64mW | 105mW | 105mW |
| Package / Case | 18-DIP | 10-DIP (0.200", 5.08mm) | 18-DIP (0.600", 15.24mm), 12 Leads | 18-DIP |
