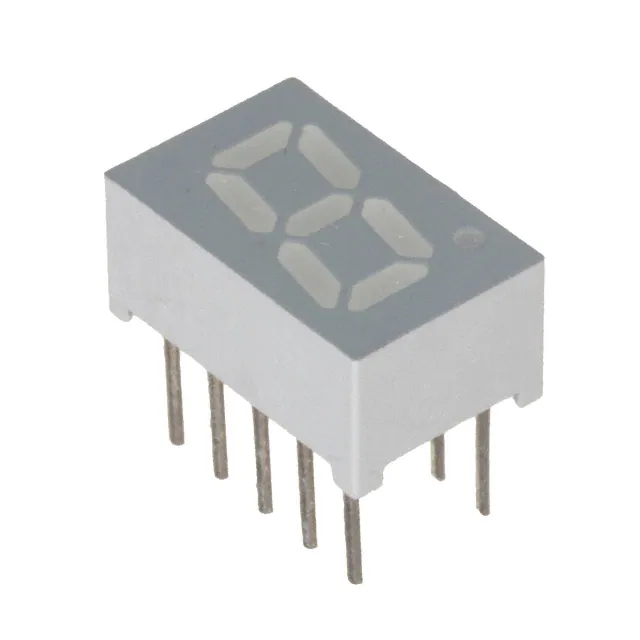

| Part Number | HDSP-201G | HDSP-211G | HDSP-203G | HDSP-201C |
|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active |
| Display Format | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) |
| Digit/Alpha Size | 0.32" (8.00mm) | 0.32" (8.00mm) | 0.32" (8.00mm) | 0.32" (8.00mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Cathode | Common Anode |
| Color | Green | Green | Green | Red |
| Voltage - Forward (Vf) (Typ) | 2.08V | 2.08V | 2.08V | 1.97V |
| Current - Test | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | - | - | - | - |
| Wavelength - Peak | 571nm | 571nm | 571nm | 640nm |
| Power Dissipation (Max) | 52mW | 52mW | 52mW | 52mW |
| Package / Case | 10-DIP (0.192", 4.88mm) | 10-DIP (0.192", 4.88mm) | 10-DIP (0.192", 4.88mm) | 10-DIP (0.192", 4.88mm) |
