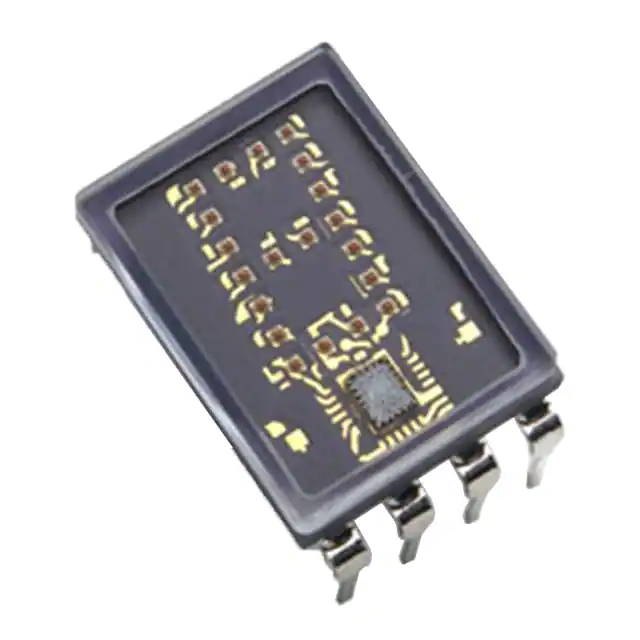

| Part Number | HDSP-0762 | HDSP-0962 | HDSP-0862 | HDSP-0772 | HDSP-0763 | HDSP-0792 | HDSP-0782 | HDSP-0760 | HDSP-0761 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | +/-1 (overflow) | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) |
| Digit/Alpha Size | 0.29" (7.37mm) | 0.29" (7.37mm) | 0.29" (7.37mm) | 0.29" (7.37mm) | 0.29" (7.37mm) | 0.29" (7.37mm) | 0.29" (7.37mm) | 0.29" (7.37mm) | 0.29" (7.37mm) |
| Display Type | 7-Segment, Hexadecimal | 7-Segment, Hexadecimal | 7-Segment, Hexadecimal | 7-Segment, Hexadecimal | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode |
| Color | Red | Green | Yellow | Red | Red | Red | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | - | - | - | - | 1.75V | - | - | - | - |
| Current - Test | 10mA | 10mA | 120mA | 10mA | 10mA | 10mA | 10mA | 10mA | 10mA |
| Millicandela Rating | 0.14mcd | 0.30mcd ~ 2.63mcd | 0.22mcd ~ 2.39mcd | 0.26mcd ~ 1.82mcd | 0.06mcd ~ 1.17mcd | 0.26mcd ~ 1.82mcd | 0.06mcd ~ 1.17mcd | 0.06mcd ~ 1.17mcd | 0.06mcd ~ 1.17mcd |
| Wavelength - Peak | 635nm | 568nm | 583nm | 635nm | 635nm | 635nm | 635nm | 635nm | 635nm |
| Power Dissipation (Max) | 573mW | 963mW | 963mW | 963mW | 573mW | 963mW | 573mW | 573mW | 573mW |
| Package / Case | 8-DIP (0.600", 15.20mm) | 8-DIP (0.600", 15.20mm) | 8-DIP (0.600", 15.20mm) | 8-DIP (0.600", 15.20mm) | 8-DIP (0.600", 15.20mm) | 8-DIP (0.600", 15.20mm) | 8-DIP (0.600", 15.20mm) | 8-DIP (0.600", 15.20mm) | 8-DIP (0.600", 15.20mm) |
