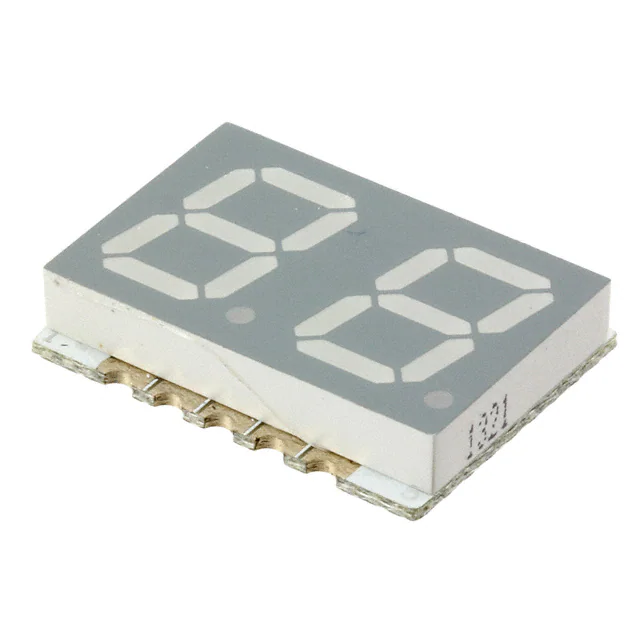

| Part Number | HDSM-443C | HDSM-543C | HDSM-433C |
|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active |
| Display Format | - | - | - |
| Number of Characters | 2 | 2 | 1 |
| Size / Dimension | 0.512" H x 0.772" W x 0.148" D (13.00mm x 19.60mm x 3.75mm) | 0.669" H x 0.984" W x 0.148" D (17.00mm x 25.00mm x 3.75mm) | 0.512" H x 0.386" W x 0.148" D (13.00mm x 9.80mm x 3.75mm) |
| Digit/Alpha Size | 0.39" (10.00mm) | 0.56" (14.22mm) | 0.39" (10.00mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Cathode |
| Color | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2V |
| Current - Test | 20mA | 20mA | 20mA |
| Millicandela Rating | 14.3mcd | 16mcd | 14.3mcd |
| Wavelength - Peak | 644nm | 632nm | 644nm |
| Power Dissipation (Max) | 65mW | 65mW | 65mW |
| Package / Case | 10-SMD, No Lead | 10-SMD, No Lead | 10-SMD, No Lead |
