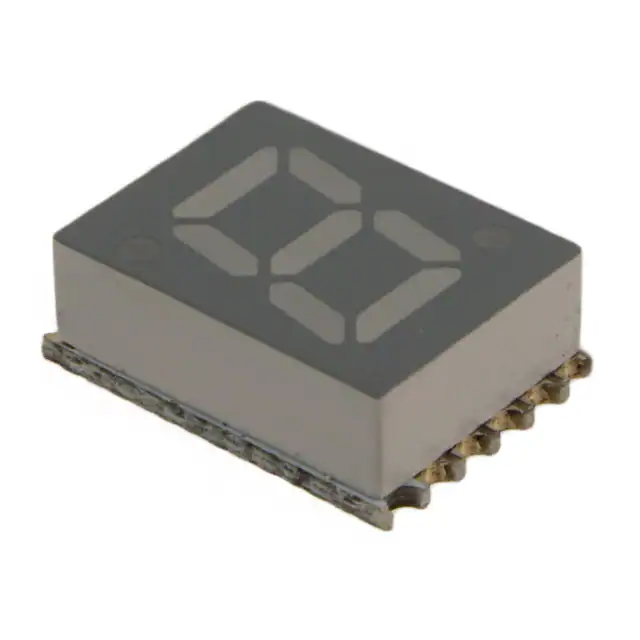

| Part Number | HDSM-283B | HDSM-283H | HDSM-283C | HDSM-283L | HDSM-283F | HDSM-281B |
|---|---|---|---|---|---|---|
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Product Status | Active | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) | 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) | 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) | 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) | 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) | 0.394" H x 0.295" W x 0.124" D (10.00mm x 7.50mm x 3.15mm) |
| Digit/Alpha Size | 0.28" (7.00mm) | 0.28" (7.00mm) | 0.28" (7.00mm) | 0.28" (7.00mm) | 0.28" (7.00mm) | 0.28" (7.00mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Cathode | Common Cathode | Common Cathode | Common Anode |
| Color | Blue | Green | Red | Orange | Yellow | Blue |
| Voltage - Forward (Vf) (Typ) | 3.3V | 2.1V | 2V | 2.1V | 2.1V | 3.3V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 6mcd | 6mcd | 7.5mcd | 8.5mcd | 8mcd | 6mcd |
| Wavelength - Peak | 462nm | 572nm | 632nm | 611nm | 591nm | 462nm |
| Power Dissipation (Max) | 100mW | 65mW | 65mW | 65mW | 65mW | 100mW |
| Package / Case | 12-SMD, No Lead, 11 Pads | 12-SMD, No Lead, 11 Pads | 12-SMD, No Lead, 11 Pads | 12-SMD, No Lead, 11 Pads | 12-SMD, No Lead, 11 Pads | 12-SMD, No Lead, 11 Pads |
