HCPL-M701
  • Share:

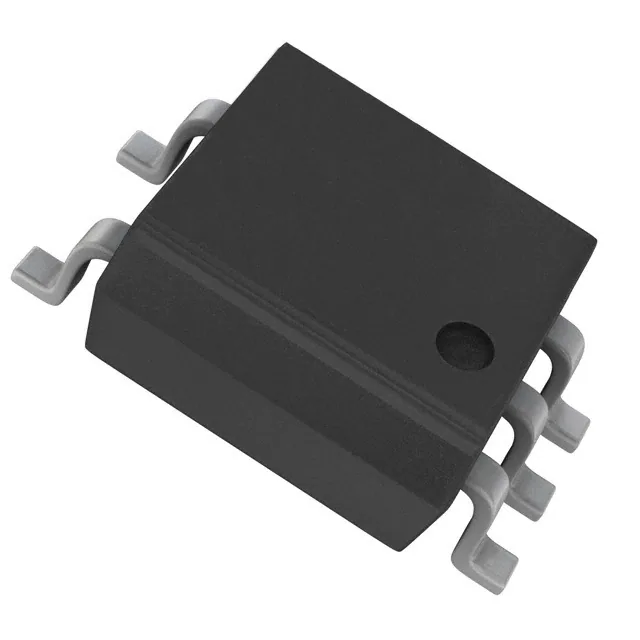

Broadcom Limited HCPL-M701

Manufacturer No:
HCPL-M701
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
HCPL-M701 Datasheet
ECAD Model:
-
Description:
OPTOISO 3.75KV DARLINGTON 6SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):500% @ 1.6mA
Current Transfer Ratio (Max):3500% @ 500µA
Turn On / Turn Off Time (Typ):500ns, 1µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):18V
Current - Output / Channel:60mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:0°C ~ 70°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:-
0 Remaining View Similar

In Stock

$1.65
299

Please send RFQ , we will respond immediately.
