HCPL-817-W6CE
  • Share:

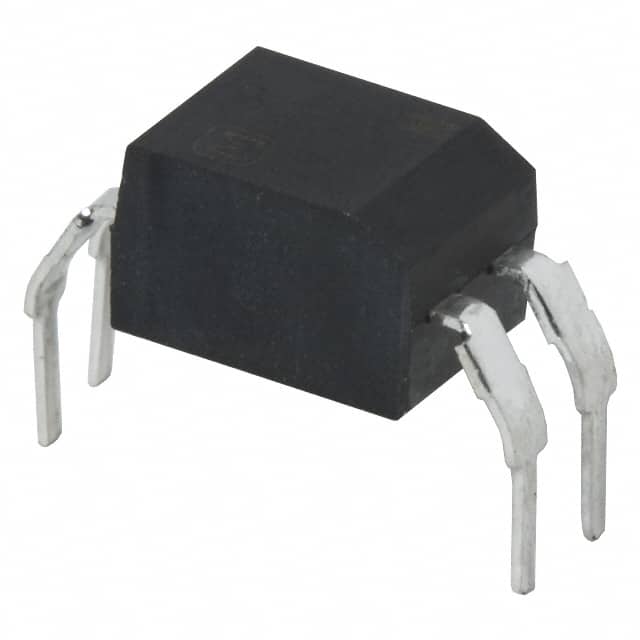

Broadcom Limited HCPL-817-W6CE

Manufacturer No:
HCPL-817-W6CE
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
HCPL-817-W6CE Datasheet
ECAD Model:
-
Description:
OPTOISOLATOR 5KV TRANSISTOR 4DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):200% @ 5mA
Current Transfer Ratio (Max):400% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):70V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Through Hole
Package / Case:4-DIP (0.400", 10.16mm)
Supplier Device Package:4-DIP
0 Remaining View Similar

In Stock

$0.15
2,599

Please send RFQ , we will respond immediately.
