HCPL-817-56BE
  • Share:

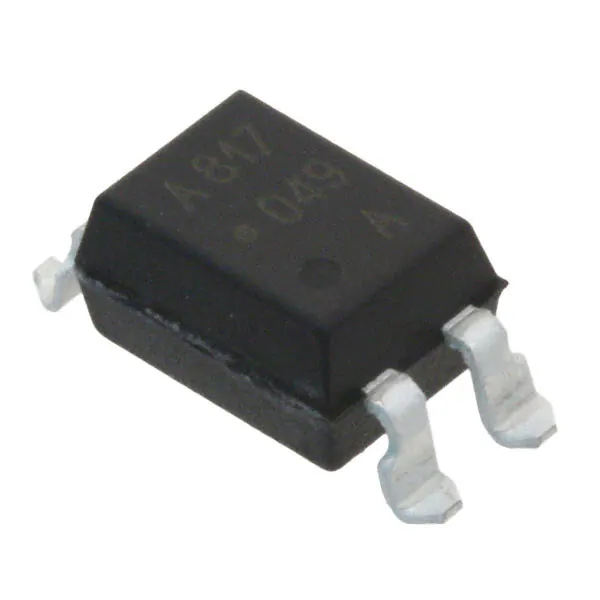

Broadcom Limited HCPL-817-56BE

Manufacturer No:
HCPL-817-56BE
Manufacturer:
Broadcom Limited
Package:
Tape & Reel (TR)
Datasheet:
HCPL-817-56BE Datasheet
ECAD Model:
-
Description:
OPTOISOLATOR 5KV TRANSISTOR 4SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):130% @ 5mA
Current Transfer Ratio (Max):260% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):70V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
0 Remaining View Similar

In Stock

$0.59
360

Please send RFQ , we will respond immediately.
