HCPL-814-W6AE
  • Share:

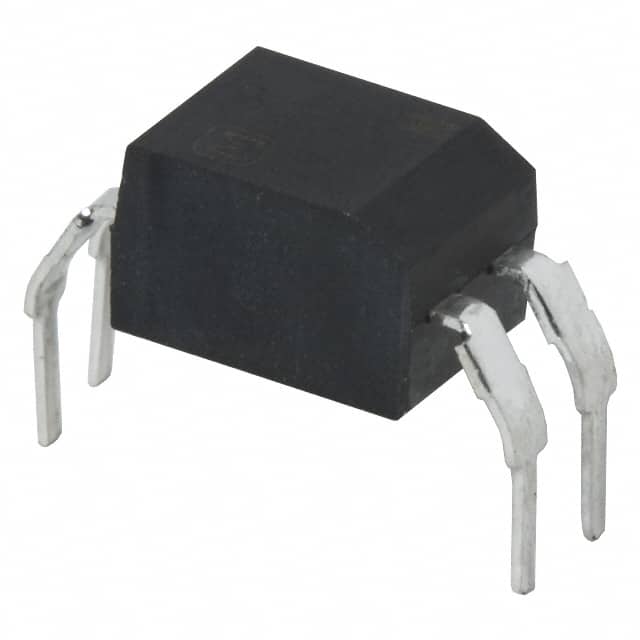

Broadcom Limited HCPL-814-W6AE

Manufacturer No:
HCPL-814-W6AE
Manufacturer:
Broadcom Limited
Package:
Tube
Datasheet:
HCPL-814-W6AE Datasheet
ECAD Model:
-
Description:
OPTOISOLATOR 5KV TRANSISTOR 4DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):50% @ 1mA
Current Transfer Ratio (Max):150% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):35V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Through Hole
Package / Case:4-DIP (0.400", 10.16mm)
Supplier Device Package:4-DIP
